【NR】DN150单球橡胶接头“板式换热机组用3年免维护”

周期:2018.11.20

服务内容:【NR】DN150单球橡胶接头“板式换热机组用3年免维护”

简介:上海淞江减震器集团有限公司官方网站为您介绍:【NR】DN150单球橡胶接头“板式换热机组用3年免维护”信息,淞江集团为众多高压板式换热机组配套橡胶接头,我厂承诺3年免维护,凡是在3年内出现维护情况的,厂家均有质保。


【NR】DN150单球橡胶接头“板式换热机组用3年免维护”
DN150 single ball rubber joint "plate heat exchanger unit for 3 years free maintenance"

上海淞江减震器集团有限公司官方网站为您介绍:【NR】DN150单球橡胶接头“板式换热机组用3年免维护”信息,淞江集团为众多高压板式换热机组配套橡胶接头,我厂承诺3年免维护,凡是在3年内出现维护情况的,厂家均有质保。
The official website of Shanghai Songjiang Shock Absorber Group Co., Ltd. introduces to you: [NR] DN150 single ball rubber joint "three-year maintenance-free" information, Songjiang Group for many high-pressure plate heat exchangers supporting rubber joints, our factory promises three-year maintenance-free, any maintenance situation occurs within three years, manufacturers have quality assurance.

橡胶接头行业TS压力管道生产许可企业,TS编号:TS2731B90-2020
Rubber joint industry TS pressure pipe production license enterprise, TS number: TS2731B90-2020

【NR】DN150单球橡胶接头“板式换热机组用3年免维护”

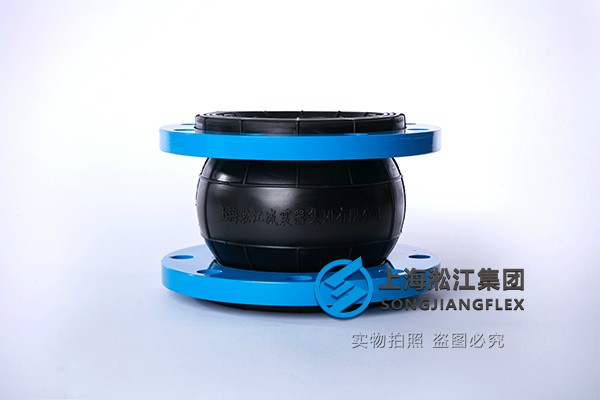

名称:单球橡胶接头 点击下载图纸
型号:KXT-NR
口径:DN150
压力:1.6Mpa
长度:180mm
橡胶材质:天然橡胶(云象 / 东风1#)
法兰材质:碳钢 / 球墨QT450 / 不锈钢
法兰标准:GB/T 9119-2000 (除此法兰标准之外,我厂还可以配套更多法兰标准,如需了解其他法兰标准请点击:橡胶接头法兰标准
适用介质:普通水、空调水、温度80度以下;(各种酸碱、油类、粉状等特殊介质不能用,要选择特殊材质才可以使用
其他介质:弱酸碱、120度高温请点击:EPDM橡胶接头
               液压油介质请点击:NBR橡胶接头
               强酸碱、航空煤油、汽油、柴油请点击:PTFE橡胶接头
使用优点:减震、降噪、保护水泵设备的长期使用,降低维修成本。
质保期限:36个月
生产厂家:上海淞江减震器集团有限公司
资质证书:合格证、质保书、检验报告、橡胶接头行业TS压力管道生产许可证、国家型式试验报告、第三方性能检测报告、材质报告。
Name: single ball rubber joint
Model: KXT-NR
Caliber: DN150
Pressure: 1.6Mpa
Length: 180mm
Rubber material: natural rubber (cloud Elephant / Dongfeng 1#)
Flange material: carbon steel / ductile QT450 / stainless steel.
Flange standard: GB/T 9119-2000 (in addition to this flange standard, our factory can also support more flange standards, if you need to know other flange standards, please click: rubber joint flange standard)
Applicable media: ordinary water, air conditioning water, temperature below 80 degrees; (various acid-base, oil, powder and other special media can not be used, to select special materials can be used;)
Other media: weak acid and alkali, 120 degree high temperature, please click: EPDM rubber joint;
Hydraulic oil medium please click: NBR rubber joint;
Strong acid base, aviation kerosene, gasoline and diesel oil please click: PTFE rubber joint.
Advantages: shock absorption, noise reduction, protection of water pump equipment for long-term use, reduce maintenance costs.
Warranty period: 36 months.
Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.
Qualification Certificate: Qualification Certificate, Quality Assurance Certificate, Inspection Report, TS Pressure Pipeline Production License of Rubber Joint Industry, National Type Test Report, Third Party Performance Test Report, Material Report.
