【FKM】DN80单球氟橡胶软连接“化工厂管道好帮手”

周期:2018.10.9

服务内容:【FKM】DN80单球氟橡胶软连接“化工厂管道好帮手”

简介:上海淞江减震器集团有限公司官方网站为您介绍:【FKM】DN80单球氟橡胶软连接“化工厂管道好帮手”信息,淞江集团为化工厂酸碱管道生产一款耐酸碱型橡胶接头产品,采用氟橡胶生产,具有良好的耐酸碱性能,也有耐高温140的性能,以下是DN65单球氟橡胶软连接实物拍照。


【FKM】DN80单球氟橡胶软连接“化工厂管道好帮手”
DN65 single ball fluorine rubber soft connection "good assistant of chemical plant piping"

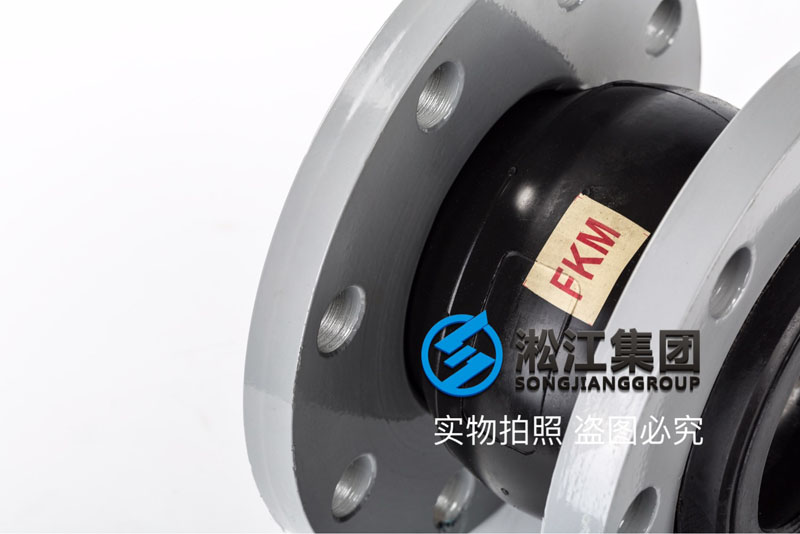

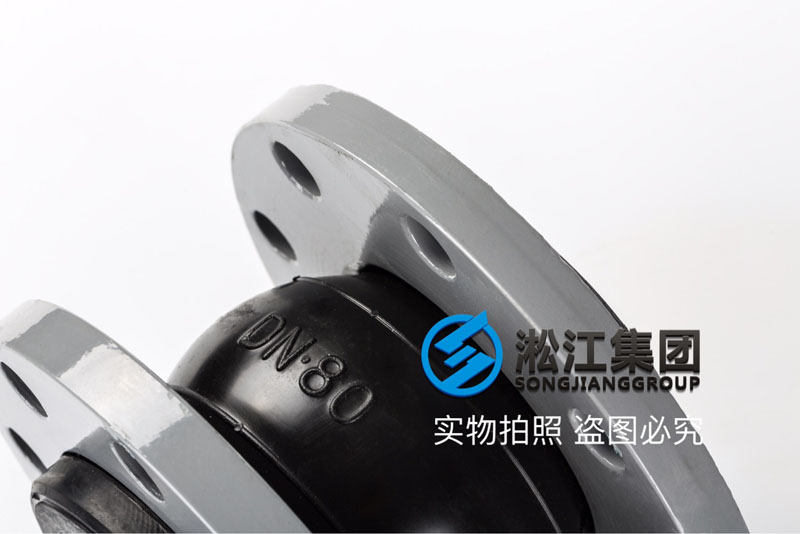

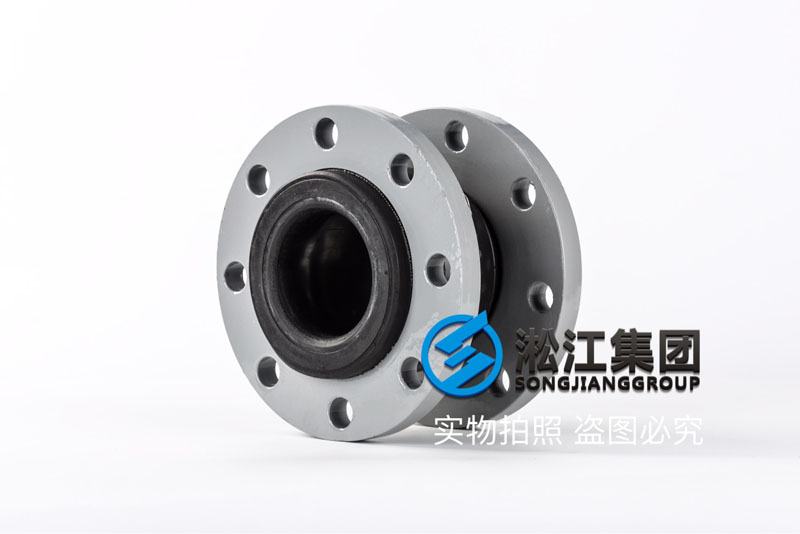

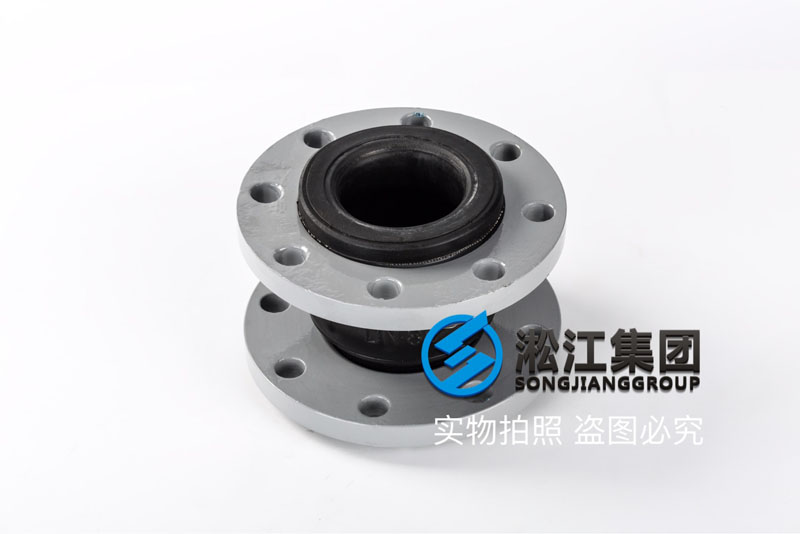

上海淞江减震器集团有限公司官方网站为您介绍:【FKM】DN80单球氟橡胶软连接“化工厂管道好帮手”信息,淞江集团为化工厂酸碱管道生产一款耐酸碱型橡胶接头产品,采用氟橡胶生产,具有良好的耐酸碱性能,也有耐高温140的性能,以下是DN80单球氟橡胶软连接实物拍照。
The official website of Shanghai Meijiang Shock Absorber Group Co., Ltd. [FKM] DN80 single ball fluororubber soft connection "good helper in chemical plant pipeline" information, Meijiang Group for the chemical plant acid-base pipeline production of an acid-resistant rubber joint products, using fluororubber production, with good acid and alkali resistance, but also high temperature 140 The performance of the following is DN80 single ball fluorine rubber soft connection physical photo.

【FKM】DN65单球氟橡胶软连接“化工厂管道好帮手”









名称:单球氟橡胶软连接
型号:DN80
安装长度:135mm
轴向压缩:12mm
轴向拉伸:6mm
横向位移:10mm
偏转角度:15°
标准:GB/T 9119-2000
压力:PN16
法兰:碳钢 / 球墨
介质:酸碱、高温140度以下
质保:1年
橡胶材质:氟橡胶(FKM)
使用优点:减震、降噪、保护管道设备的长期使用,降低维修成本。
生产厂家:上海淞江减震器集团有限公司
资质证书:合格证、质保书、检验报告、橡胶接头行业TS压力管道生产许可证、国家型式试验报告、第三方性能检测报告、材质报告等。
淞江集团橡胶接头生产流程:原材料检测-小料自动配料-大料自动配料-自动混炼-自动成筒-自动成型-自动硫化-质量检测-实验室检测-交付客户
Name: single ball fluorine rubber soft connection
Model: DN80
Installation length: 135mm
Axial compression: 12mm
Axial tension: 6mm
Lateral displacement: 10mm
Deflection angle: 15 degrees.
Standard: GB/T 9119-2000
Pressure: PN16
Flange: carbon steel / spheroidal graphite
Medium: acid base, high temperature below 140 degrees.
Warranty: 1 years
Rubber material: fluorine rubber (FKM)
Advantages: shock absorption, noise reduction, protection of pipeline equipment for long-term use, and reduction of maintenance costs.
Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.
Qualification Certificate: Qualification Certificate, Quality Guarantee, Inspection Report, TS Pressure Pipeline Production License of Rubber Joint Industry, National Type Test Report, Third Party Performance Test Report, Material Report, etc.
Production Process of Rubber Joints in Songjiang Group: Raw Material Testing - Automatic Blending of Small Material - Automatic Blending of Large Material - Automatic Mixing - Automatic Barrel Forming - Automatic Forming - Automatic Vulcanization - Quality Testing - Laboratory Testing - Delivery to Customers


以下是淞江集团介绍:
The following is the introduction of Songjiang group
