NRCASE SHOW

【NR】DN125单球橡胶接头“热交换机组好帮手”

服务内容:【NR】DN125单球橡胶接头“热交换机组好帮手”

简介:【NR】DN125单球橡胶接头“热交换机组的好帮手” DN125 single ball rubber joint "good helper of heat exchange unit" 上海淞江减震器集团有限公司官方网站为您介绍:【NR】DN125单球橡胶接头“热交换机组的......

【NR】DN125单球橡胶接头“热交换机组的好帮手”
DN125 single ball rubber joint "good helper of heat exchange unit"

上海淞江减震器集团有限公司官方网站为您介绍:【NR】DN125单球橡胶接头“热交换机组的好帮手”信息,淞江集团为众多热交换机组生产厂家配套高压橡胶接头,压力16kg,质保3年,以下是详细介绍。
The official website of Shanghai Songjiang Shock Absorber Group Co., Ltd. introduces for you: [NR] DN125 single ball rubber joint "good helper of heat exchanger" information, Songjiang Group is a high-pressure rubber joint for many heat exchanger manufacturers, pressure 16kg, quality assurance for 3 years, the following is a detailed introduction.

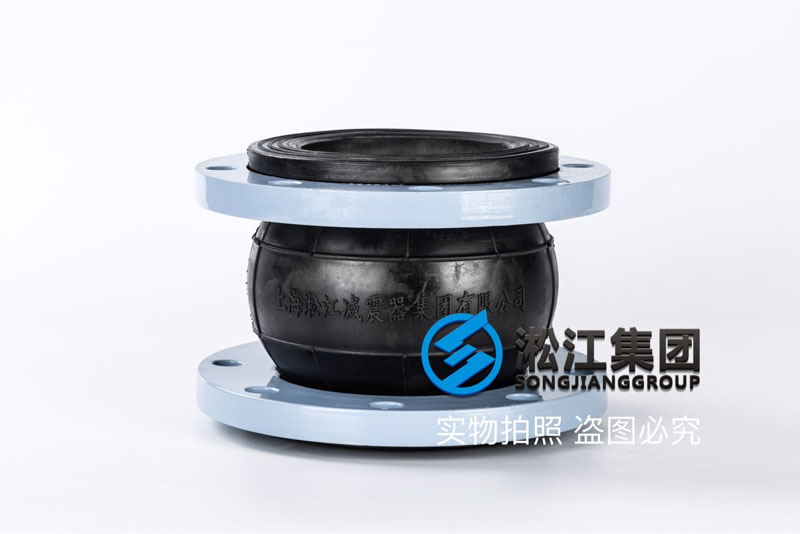

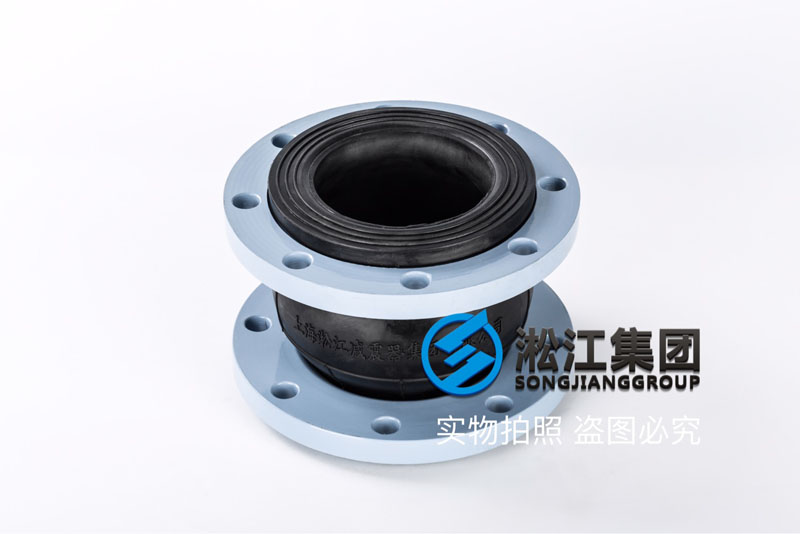

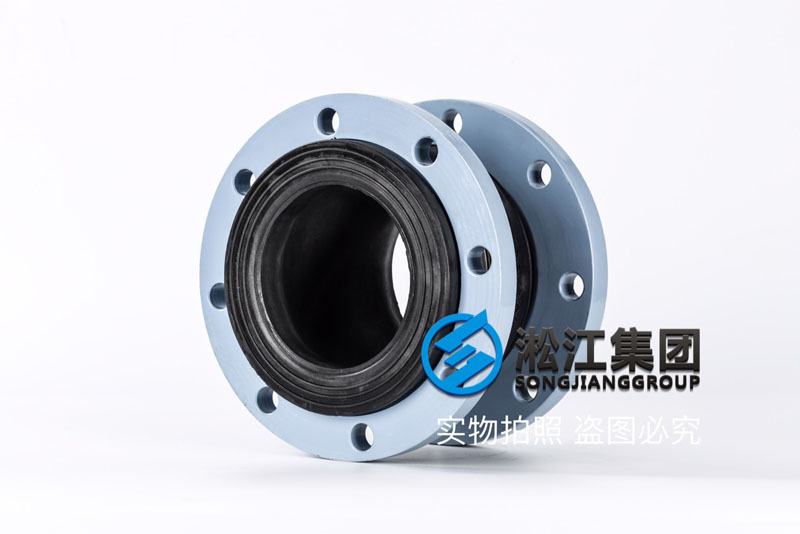

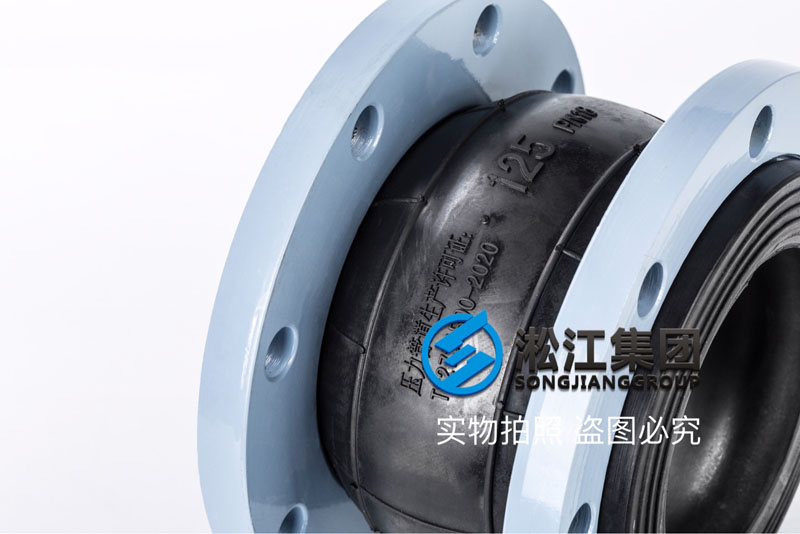

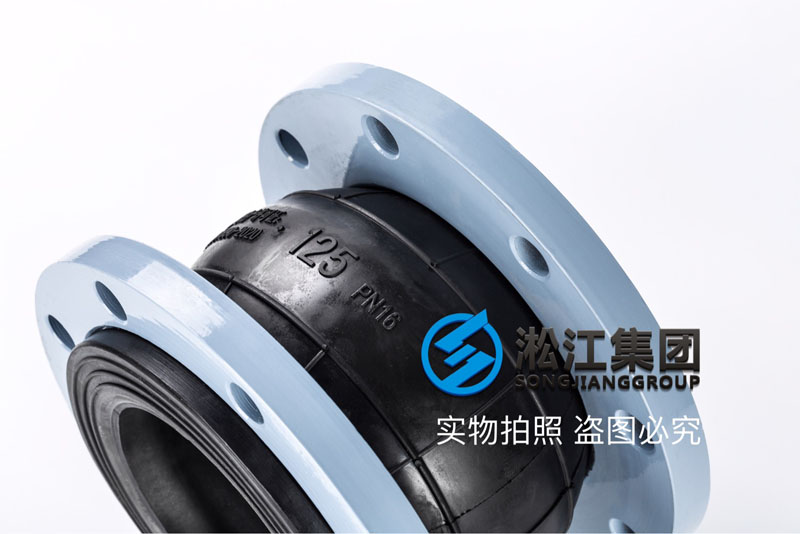

一、DN125热交换机组单球橡胶接头实物拍照:
【NR】DN125单球橡胶接头“热交换机组好帮手”
【NR】DN125单球橡胶接头“热交换机组好帮手”
【NR】DN125单球橡胶接头“热交换机组好帮手”
【NR】DN125单球橡胶接头“热交换机组好帮手”
【NR】DN125单球橡胶接头“热交换机组好帮手”
二、热交换机组单球橡胶接头介绍:
名称:单球橡胶接头 点击下载图纸
型号:KXT-NR
口径:DN125
压力:1.6Mpa
长度:165mm
橡胶材质:天然橡胶(云象 / 东风1#)
法兰材质:碳钢;另有球墨、不锈钢、PVC
【NR】DN125单球橡胶接头“热交换机组好帮手”
法兰标准:GB/T 9119-2000 (除此法兰标准之外,我厂还可以配套更多法兰标准,如需了解其他法兰标准请点击:橡胶接头法兰标准
适用介质:普通水、空调水、温度80度以下;(各种酸碱、油类、粉状等特殊介质不能用,要选择特殊材质才可以使用
其他介质:弱酸碱、120度高温请点击:EPDM三元乙丙橡胶接头
液压油介质请点击:NBR丁腈橡胶接头
强酸碱、航空煤油、汽油、柴油请点击:PTFE四氟橡胶接头
使用优点:减震、降噪、保护水泵设备的长期使用,降低维修成本。
质保期限:36个月
生产厂家:上海淞江减震器集团有限公司

资质证书:合格证、质保书、检验报告、德国莱茵TUV认证、国家型式试验报告、第三方性能检测报告、材质报告。

安装教程链接:橡胶接头安装说明

Name: single ball rubber joint
Model: KXT-NR
Caliber: DN125
Pressure: 1.6Mpa
Length: 165mm
Rubber material: natural rubber (cloud Elephant / Dongfeng 1#)
Flange material: carbon steel / ductile QT450 / stainless steel.
Flange standard: GB/T 9119-2000 (in addition to this flange standard, our factory can also support more flange standards, if you need to know other flange standards, please click: rubber joint flange standard)
Applicable media: ordinary water, air conditioning water, temperature below 80 degrees; (various acid-base, oil, powder and other special media can not be used, to select special materials can be used;)
Other media: weak acid and alkali, 120 degree high temperature, please click: EPDM rubber joint;
Hydraulic oil medium please click: NBR rubber joint;
Strong acid base, aviation kerosene, gasoline and diesel oil please click: PTFE rubber joint.
Advantages: shock absorption, noise reduction, protection of water pump equipment for long-term use, reduce maintenance costs.
Warranty period: 36 months.
Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.
Qualification Certificate: Qualification Certificate, Quality Assurance Certificate, Inspection Report, TS Pressure Pipeline Production License of Rubber Joint Industry, National Type Test Report, Third Party Performance Test Report, Material Report.
三、热交换机组单球橡胶接头发货现场:
【NR】DN125单球橡胶接头“热交换机组好帮手”
【NR】DN125单球橡胶接头“热交换机组好帮手”
【NR】DN125单球橡胶接头“热交换机组好帮手”

四、合肥京东方空调系统动力泵房橡胶接头案例:

【NR】DN125单球橡胶接头“热交换机组好帮手”

五、热交换机组介绍:

热交换机组,即换热机组,是进行热交换的设备。

六、热交换机组单球橡胶接头工厂介绍:

【NR】DN125单球橡胶接头“热交换机组好帮手”
【NR】DN125单球橡胶接头“热交换机组好帮手”
【NR】DN125单球橡胶接头“热交换机组好帮手”
【NR】DN125单球橡胶接头“热交换机组好帮手”

相关链接:橡胶接头工程案例
