【ANSI】DN150美标橡胶防震接头“150Lb美国标准”

周期:2018.9.10

服务内容:【ANSI】DN150美标橡胶防震接头“150Lb美国标准”

简介:上海淞江减震器集团有限公司官方网站为您介绍:【ANSI】DN150美标橡胶防震接头“150Lb美国标准”信息,淞江集团为众多美洲客户提供美标150lb标准橡胶防震接头产品,我厂拥有自己的自动化生产设备和疲劳检测设备,欢迎实地参观考察。


【ANSI】DN150美标橡胶防震接头“150Lb美国标准”
DN150 American standard rubber shock joint "150Lb American Standard"

上海淞江减震器集团有限公司官方网站为您介绍:【ANSI】DN150美标橡胶防震接头“150Lb美国标准”信息,淞江集团为众多美洲客户介绍美标150lb标准橡胶防震接头产品,我厂拥有自己的自动化生产设备和疲劳检测设备,欢迎实地参观考察。
The official website of Shanghai Meijiang Shock Absorber Group Co., Ltd. [ANSI] DN150 U.S. Standard Rubber Shock-proof Joints "150Lb U.S. Standard" information, Meijiang Group provides U.S. Standard Rubber Shock-proof Joints for many American customers, our factory has its own automatic production equipment and fatigue testing equipment, welcome on-site Visiting.

橡胶接头行业TS压力管道生产许可单位,TS编号:TS2731B90-2020
Domestic rubber joint industry TS pressure pipe production license unit, TS number: TS2731B90-2020

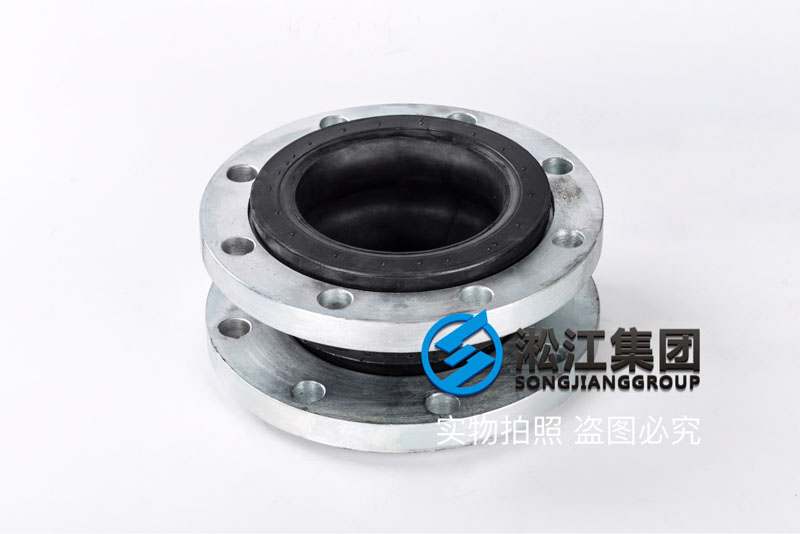

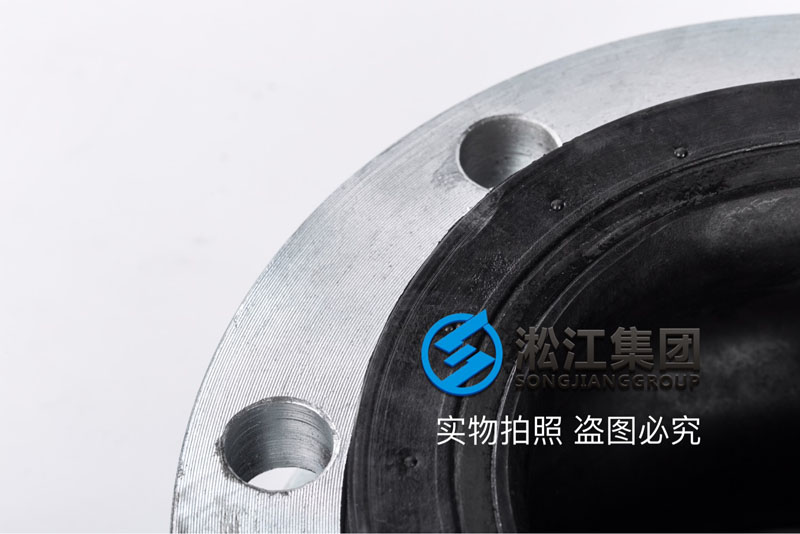

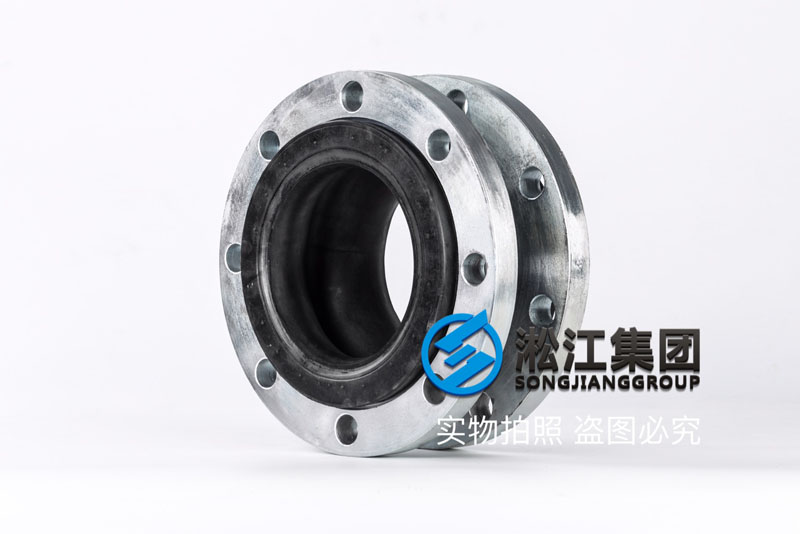

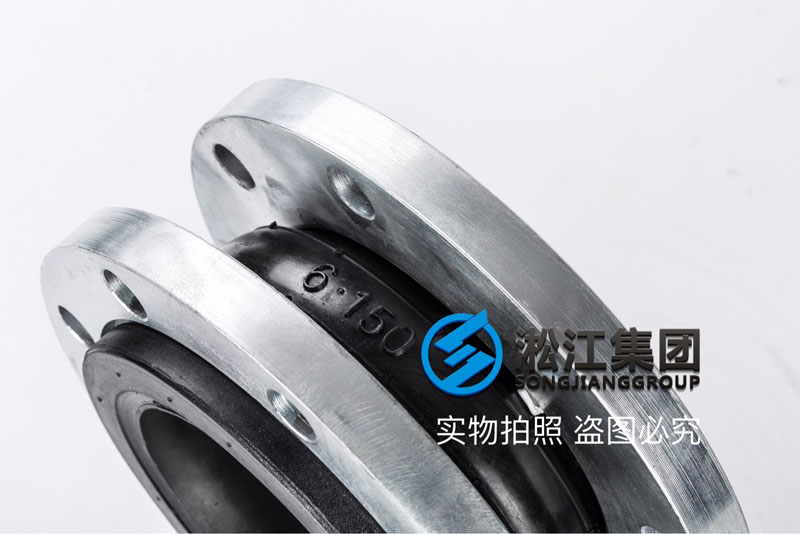

【ANSI】DN150美标橡胶防震接头“150Lb美*标准”









名称:单球美标橡胶伸缩接头
型号:ANSI-150LB
口径:DN150(6寸)
橡胶:三元乙丙橡胶(淞江集团所有三元乙丙橡胶全部采用日本三井4045,含量在46%左右,有材质证明,有含量检测报告,也有国家型式试验中心的产品检测报告和性能检测报告等证书。)
法兰:碳钢冷镀锌
优点:减震、降噪、补偿管道、可偏转、可位移。

质保:3年
安装长度:130mm(150mm)
轴向压缩:10mm
轴向拉伸:6mm
横向位移:12mm
偏转角度:6°
标准:ANSI-150LB
法兰外径:280mm
螺栓孔中心距:241.5mm
螺栓孔径:22mm
螺栓孔数:8
压力:150LB(PN20)
法兰:碳钢(Q235)
介质:海水、
生产厂家:上海淞江减震器集团有限公司
Name: single ball American standard rubber expansion joint
Model: ANSI-150LB
Caliber: DN150 (6 inches)
Rubber: Ethylene-propylene-diene rubber (all Ethylene-propylene-diene rubber of Meijiang Group adopts Japan Mitsui 4045, the content is about 46%, there is material proof, there is content testing report, there are also national type testing center product testing report and performance testing report certificate).
Flange: carbon steel cold galvanized
Advantages: shock absorption, noise reduction, compensation for pipeline, deflection and displacement.

Warranty: 3 years
Installation length: 130mm (150mm)
Axial compression: 10mm
Axial tension: 6mm
Lateral displacement: 12mm
Deflection angle: 6 degrees.
Standard: ANSI-150LB
Flange diameter: 280mm
Center distance of bolt hole: 241.5mm
Bolt diameter: 22mm
Bolt hole number: 8
Pressure: 150LB (PN20)
Flange: carbon steel (Q235)
Medium: seawater,
Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.

为什么选择淞江集团?
淞江集团是橡胶接头行业通过TS压力管道生产许可单位,TS编号:TS2731B90-2020,并且我厂橡胶接头通过国家型式试验,获得家国型式试验证书,在橡胶接头领域,我们是的。
Why do you choose Songjiang group?
Songjiang group is the domestic rubber joint industry through the TS pressure pipeline production license unit, TS number: TS2731B90-2020, and our factory rubber joint through the national type test, the national type test certificate, in the field of rubber joint, we are professional.
