【ANSI】DN125美标橡胶伸缩节“长度130mm”
DN125 American rubber expansion joint "length 130mm"
上海淞江减震器集团有限公司官方网站橡胶接头栏目为您介绍：【ANSI】DN125美标橡胶伸缩节“长度130mm”信息，淞江集团是一家生产各种橡胶接头产品的厂家，拥有自己工厂的一套生产工艺流程和管理体系，确保产品质量做到有记录，有依据，有档案。
Shanghai Meijiang Shock Absorber Group Co., Ltd. Official Website Rubber Joint Column for you to introduce: [ANSI] DN125 U.S. standard rubber expansion joint "length 130mm" information, Meijiang Group is a manufacturer of various rubber joint products, has its own factory production process and management system to ensure that product quality is achieved. Records, evidence and archives.

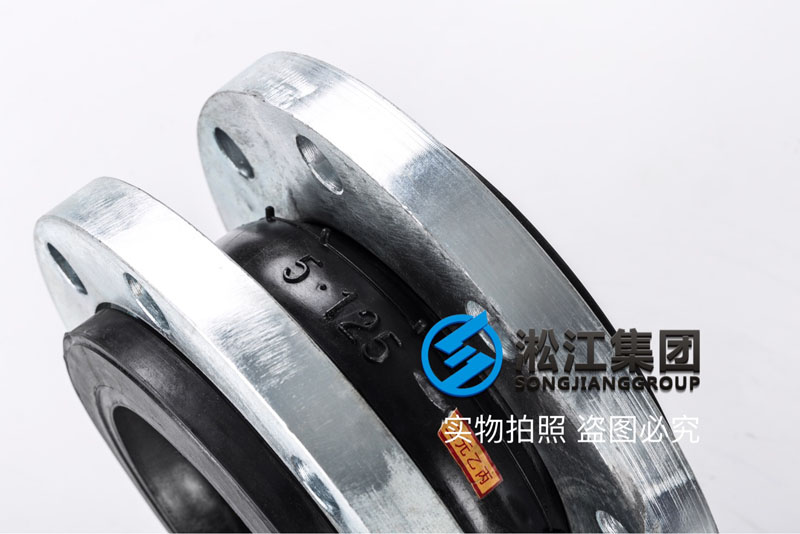

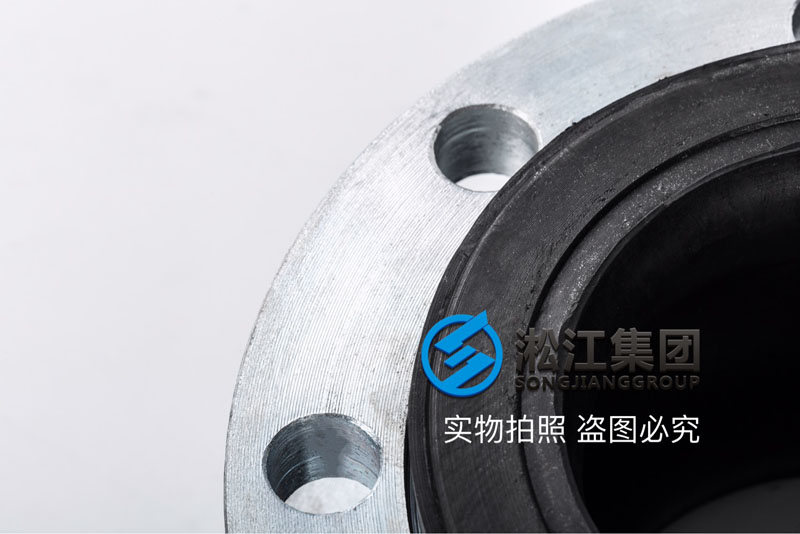

一、ANSI美标橡胶伸缩节实物拍照：
二、ANSI美标橡胶伸缩节介绍：
名称：美标橡胶伸缩节
型号：ANSI-150LB
口径：DN125（5寸）
质保：3年
优点：减震、降噪、补偿管道、可偏转、可位移。
介质：海水，120度以下弱酸碱。
生产厂家：上海淞江减震器集团有限公司
Essential information:
Name: American rubber expansion joint
Model: ANSI-150LB
Caliber: DN125 (5 inches)
Warranty: 3 years
Advantages: shock absorption, noise reduction, compensation for pipeline, deflection and displacement.
Medium: sea water, weak acid and base below 120 degrees.
Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.
橡胶性能参数：
安装长度：130mm（150mm）
轴向拉伸：6mm
轴向压缩：10mm
横向位移：12mm
偏转角度：8°
橡胶：三元乙丙橡胶（淞江集团所有三元乙丙橡胶全部采用三井4045，含量在50%左右，有材质证明，有含量检测报告，也有国家型式试验中心的产品检测报告和性能检测报告等证书。）
Rubber performance parameters:
Installation length: 130mm (150mm)
Axial tension: 6mm
Axial compression: 10mm
Lateral displacement: 12mm
Deflection angle: 8 degrees.
Rubber: Ethylene-propylene-diene rubber (all the Ethylene-propylene-diene rubber of Songjiang Group adopts Mitsui 4045, the content is about 50%, there are material proof, there are content testing reports, there are also national type testing center product testing reports and performance testing reports and other certificates.)
法兰参数：
标准：ANSI-150LB
法兰外径：255mm
螺栓孔中心距：216mm
螺栓孔径：22mm
螺栓孔数：8
压力：150LB（PN20）
法兰：碳钢（Q235）
Flange parameters:
Standard: ANSI-150LB
Flange diameter: 255mm
Center distance of bolt hole: 216mm
Bolt diameter: 22mm
Bolt hole number: 8
Pressure: 150LB (PN20)
Flange: carbon steel (Q235)
