ANSICASE SHOW

【ANSI】DN250单球美标橡胶伸缩接头“150LB”

服务内容:【ANSI】DN250单球美标橡胶伸缩接头“150LB”

简介:【ANSI】DN250单球美标橡胶伸缩接头“150LB” ANSI DN250 single ball American standard rubber expansion joint "150LB" 上海淞江减震器集团有限公司官方网站为您介绍:【ANSI】DN250单球美标橡胶伸缩接头“1......

【ANSI】DN250单球美标橡胶伸缩接头“150LB”
ANSI DN250 single ball American standard rubber expansion joint "150LB"

上海淞江减震器集团有限公司官方网站为您介绍:【ANSI】DN250单球美标橡胶伸缩接头“150LB”信息,淞江集团生产各种ANSI标准橡胶伸缩接头产品,主要采用150LB法兰标准,橡胶长度130mm,压力达到PN20,橡胶采用EPDM材料。
Shanghai Meijiang Shock Absorber Group Co., Ltd.'s official website for you to introduce: [ANSI] DN250 single ball U.S. standard rubber expansion joint "150LB" information, Meijiang Group specializes in the production of various ANSI standard rubber expansion joint products, mainly using 150LB flange standard, rubber length 130mm, pressure up to PN20, rubber using EPDM materials.

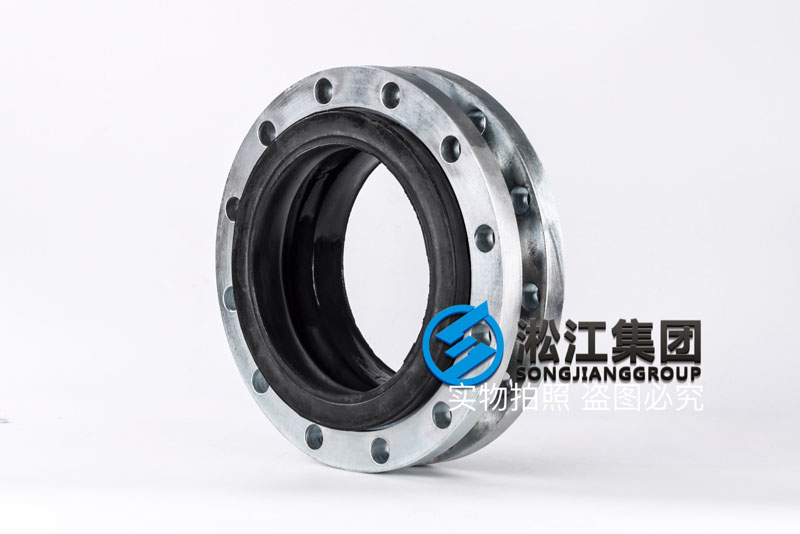

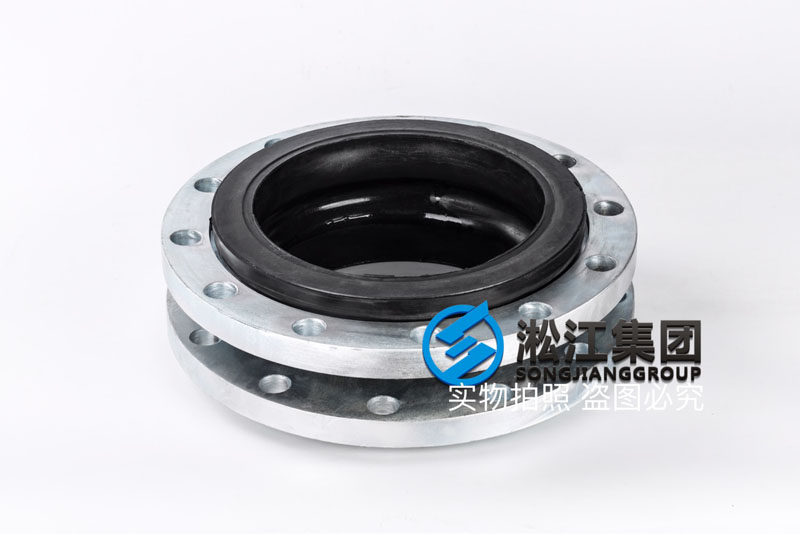

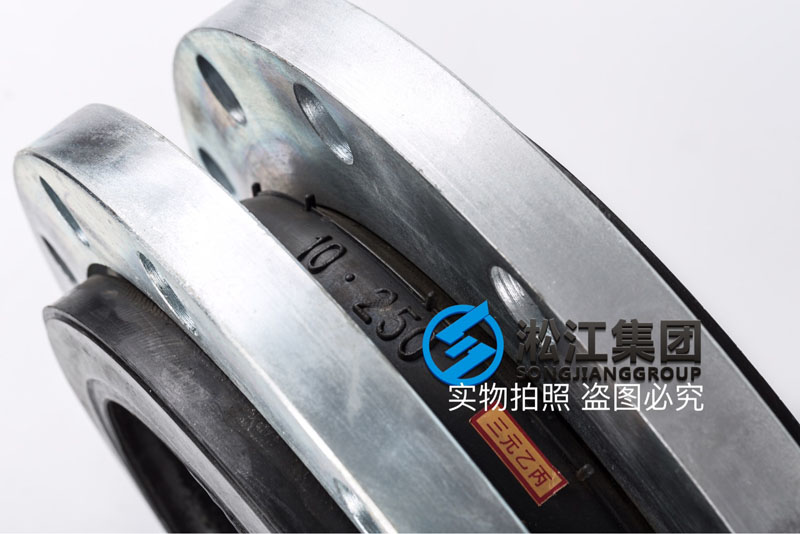

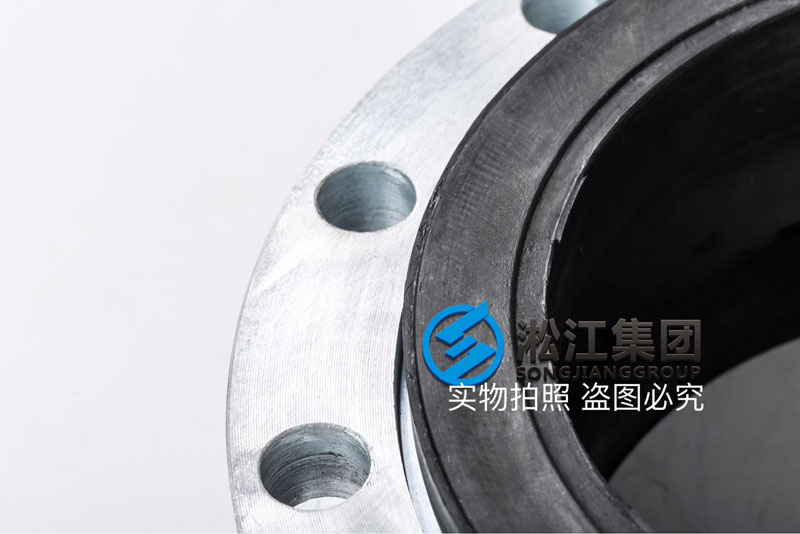

一、ANSI美标橡胶伸缩接头实物拍照:

【ANSI】DN250单球美标橡胶伸缩接头“150LB”
【ANSI】DN250单球美标橡胶伸缩接头“150LB”
【ANSI】DN250单球美标橡胶伸缩接头“150LB”
【ANSI】DN250单球美标橡胶伸缩接头“150LB”
【ANSI】DN250单球美标橡胶伸缩接头“150LB”
二、ANSI美标橡胶伸缩接头介绍:
名称:ANSI美标橡胶伸缩接头
型号:ANSI-150LB
口径:DN250(10寸)
了解该产品更多型号参数表请点击:【样册P41】美洲标准橡胶膨胀节
橡胶:三元乙丙橡胶(淞江集团所有三元乙丙橡胶全部采用日本三井4045,含量在50%左右,有材质证明,有含量检测报告,也有国家型式试验中心的产品检测报告和性能检测报告等证书。)
法兰:碳钢冷镀锌
优点:减震、降噪、补偿管道、可偏转、可位移。
质保:3年
安装长度:130mm(150mm)
轴向压缩:17mm
轴向拉伸:9mm
横向位移:12mm
偏转角度:5°
标准:ANSI-150LB
法兰外径:405mm
螺栓孔中心距:362mm
螺栓孔径:26mm
螺栓孔数:12
压力:150LB(PN20)
法兰:碳钢(Q235)
介质:海水、

生产厂家:上海淞江减震器集团有限公司

Name: single ball American standard rubber expansion joint
Model: ANSI-150LB
Caliber: DN250 (10 inches)
Rubber: Ethylene-propylene-diene rubber (all Ethylene-propylene-diene rubber of Meijiang Group adopts Japan Mitsui 4045, the content is about 50%, there is material proof, there is content testing report, there are also national type testing center product testing report and performance testing report certificate).
Flange: carbon steel cold galvanized
Advantages: shock absorption, noise reduction, compensation for pipeline, deflection and displacement.
Warranty: 3 years
Installation length: 130mm (150mm)
Axial compression: 17mm
Axial tension: 9mm
Lateral displacement: 12mm
Deflection angle: 5 degrees.
Standard: ANSI-150LB
Flange diameter: 405mm
Center distance of bolt hole: 362mm
Bolt diameter: 26mm
Bolt hole number: 12
Pressure: 150LB (PN20)
Flange: carbon steel (Q235)
Medium: seawater,

Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.

三、ANSI美标橡胶伸缩接头发货现场:

【ANSI】DN250单球美标橡胶伸缩接头“150LB”

四、ANSI美标橡胶伸缩接头工厂介绍:

【ANSI】DN250单球美标橡胶伸缩接头“150LB”
【ANSI】DN250单球美标橡胶伸缩接头“150LB”
【ANSI】DN250单球美标橡胶伸缩接头“150LB”
【ANSI】DN250单球美标橡胶伸缩接头“150LB”
