BGF-SUS型不锈钢波纹膨胀节(食品 医药 化工 水电站 换流站)
上海淞江减震器集团有限公司官方网站为您介绍:BGF-SUS型不锈钢波纹膨胀节(食品 医药 化工 水电站 换流站)信息,淞江集团为您提供高品质不锈钢波纹膨胀节产品,主要适用于食品、医药、化工、水电站、换流站等领域,以下是实物拍照,全是原创,请勿盗版。
The official website of Shanghai Songjiang shock absorber Group Co., Ltd. introduces you the information of bgf-sus stainless steel corrugated expansion joint (converter station of food, medicine and chemical Hydropower Station). Songjiang group provides you with high-quality stainless steel corrugated expansion joint products, which are mainly applicable to food, medicine, chemical industry, hydropower station, converter station and other fields. The following are physical photos, which are all original and do not pirate.

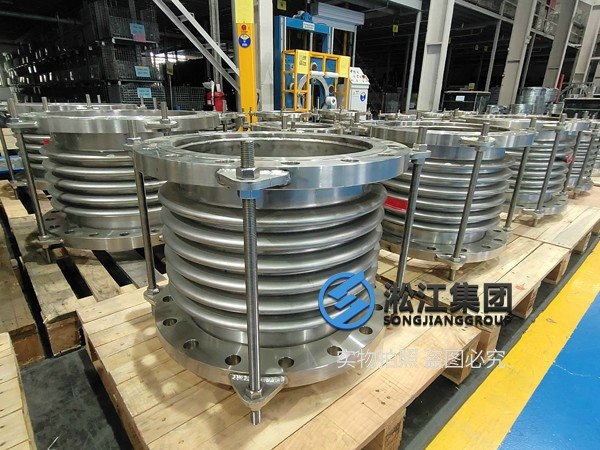

一、BGF-SUS型不锈钢波纹膨胀节实物拍照:
二、BGF-SUS型不锈钢波纹膨胀节介绍:
BGF-SUS型不锈钢波纹膨胀节为补偿因温度差与机械振动引起的附加应力,而设置在容器壳体或管道上的一种挠性结构。
主要用食品、饮水、医药、化工、液压等管道系统,起到补偿管道伸长压缩的轴向补偿作用;
法兰和波纹材质:可以做不锈钢304、316、321三种材质;
法兰连接数据可以选择GB/T 9119-2010(样册P100)也可以选择其他法兰标准生产;
产品压力:1.0MPa、1.6MPa、2.5MPa;
产品长度:标准长度与样册P93相同,也可以定制其他长度;
严禁超位移:建议波纹补偿器应该在有效补偿量内伸长、压缩,请勿横向位移;
施工防范:当焊接工作发生时,波纹补偿器本体必须防止焊接发热和火花;
介质要求:请在管道进水口加装有效去除氯离子装置(氯离子含量不超过25mg/L),避免水氯离子含量超标,产生针孔腐蚀;
橡胶接头是用在设备进出口的,可以补偿轴向和横向位移,减震效果是最好的。并且不受管道内部介质的腐蚀。
不锈钢的产品对水质要求比较高,水中氯离子含量超标的话,有可能会造成不锈钢波纹腐蚀,造成漏水。
金属软管(外面带编织网的)这种可以用在设备进出口,可以起到减震的作用,也可以补偿横向位移,轴向位移很小的。但是要注意介质腐蚀问题。
波纹补偿器一般是用作管线热胀冷缩补偿管道轴向位移的,不能补偿横向位移,主要是伸长压缩用,减震效果很低。
适用于:波纹补偿器是用在管线中间的轴向补偿产品,不适用于水泵进出口。

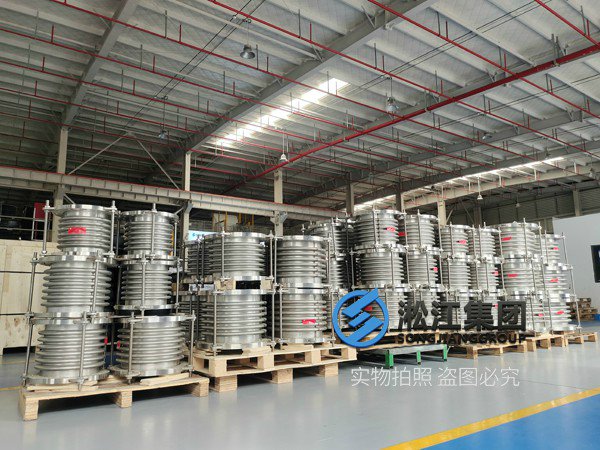

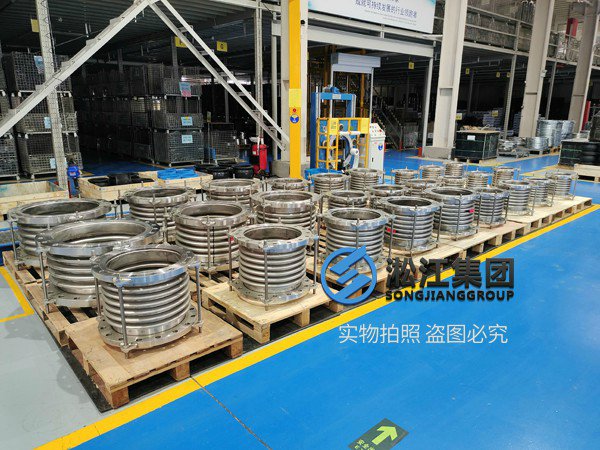

三、BGF-SUS型不锈钢波纹膨胀节发货现场:
四、BGF-SUS型不锈钢波纹膨胀节介绍:
Bgf-sus stainless steel corrugated expansion joint is made of austenitic stainless steel or materials required by users. It has excellent flexibility, corrosion resistance, high temperature resistance and high pressure resistance. It can be connected in any direction in the pipeline to compensate for temperature, absorb vibration, reduce noise, change the direction of medium transmission, eliminate mechanical displacement between pipelines or between pipelines and equipment, etc. bgf-sus stainless steel corrugated expansion joint has displacement The flexible joints of various pumps and valves that vibrate are particularly suitable.
Bgf-sus stainless steel corrugated expansion joint belongs to a compensation element. The effective expansion deformation of the bellows of its working body is used to absorb the dimensional changes of pipelines, conduits and containers caused by thermal expansion and cold contraction, or to compensate the axial, transverse and angular displacement of pipelines, conduits and containers. It can also be used for noise reduction and vibration reduction.
Material description:
Bellows body: in order to prolong the service life, all of them are made of stainless steel 304 normal materials, and support the detection of various spectrometers. One false is compensated for ten, and the thickness is all thicker than that of the same industry standard.
Welding materials: all welding materials shall be higher than the grade standard of base metal to make the welding point more firm.
Limit ear plate: all ear plates are produced by increasing the thickened size. Each model can be compared one-to-one with the same model in the same industry, which is the so-called no harm without comparison.

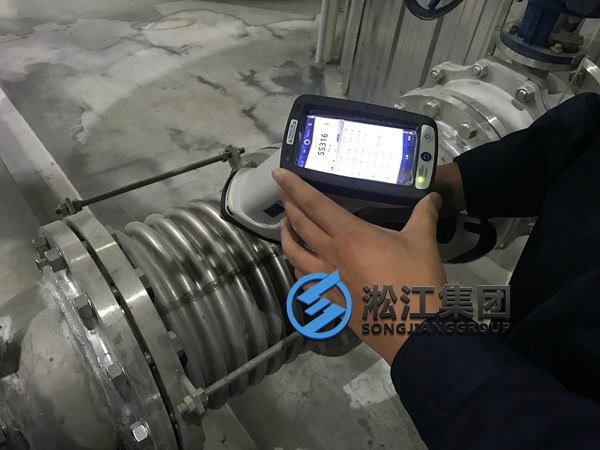

五、BGF-SUS型不锈钢波纹膨胀节光谱检测现场:
六、BGF-SUS型不锈钢波纹膨胀节光谱检测报告:

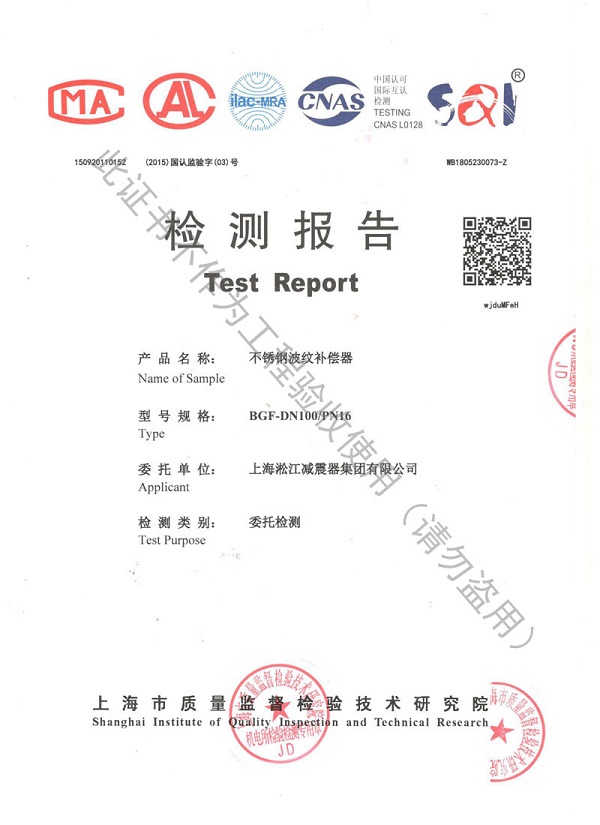

七、BGF-SUS型不锈钢波纹膨胀节检测报告:
提示:如需最新版BGF型 不锈钢波纹补偿器检测报告请联系我们。
八、BGF-SUS型不锈钢波纹膨胀节工厂介绍:
