DN32空调金属软连接

DN32空调金属软连接
Metal soft connection of air conditioning

上海淞江减震器集团有限公司官方网站为您介绍：DN32空调金属软连接信息，淞江集团为中央空调系统暖通风机进出口配套DN32空调金属软连接产品，该产品采用不锈钢304波纹，具有良好的防腐效果和良好的使用寿命，高达10多年。
Shanghai Songjiang absorber group limited official website for your introduction: DN32 air conditioning metal soft connection information, Songjiang group for the central air conditioning system in HVAC machine import and export supporting DN32 air conditioning metal soft connecting products, the products with 304 stainless steel bellows, has good anticorrosion effect and good up to 10 years.

性能介绍：
公称通径：DN32mm
自然长度：250mm
轴向压缩：10mm
轴向伸长：5mm
横向位移：20mm
偏转角度：45°
Performance introduction:

Deflection angle: 45 degrees

产品介绍：

1.产品名称：DN32空调金属软连接

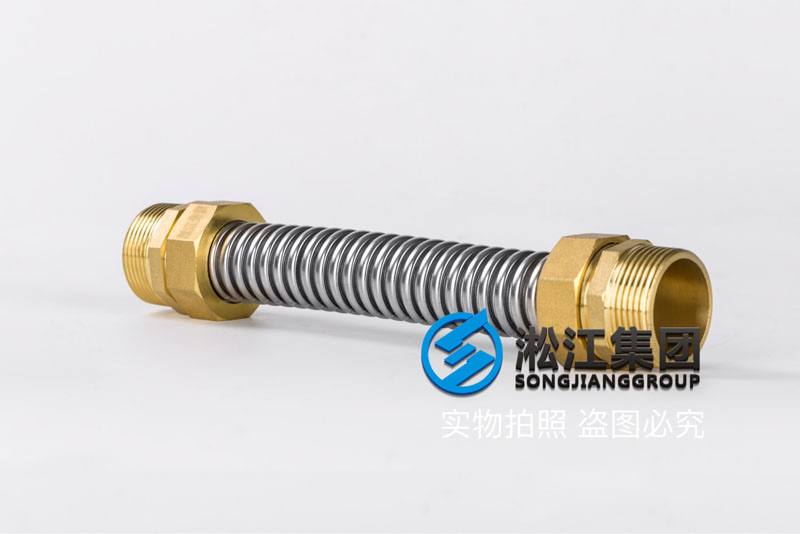

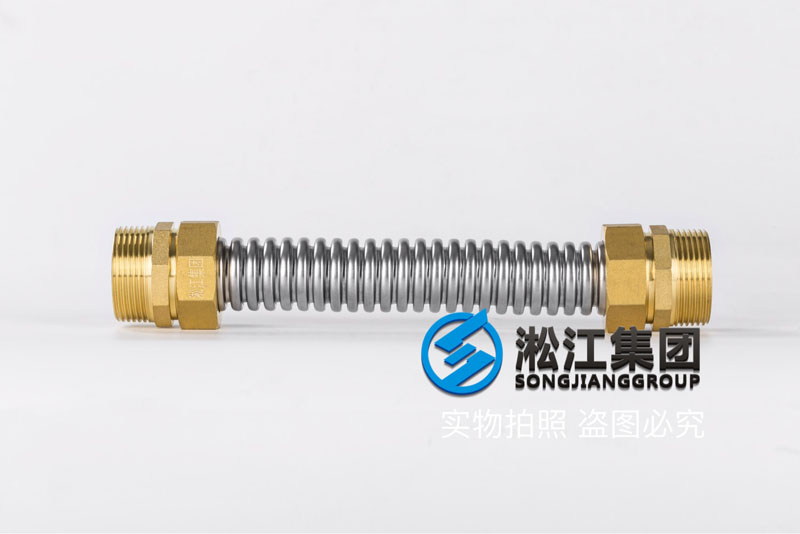

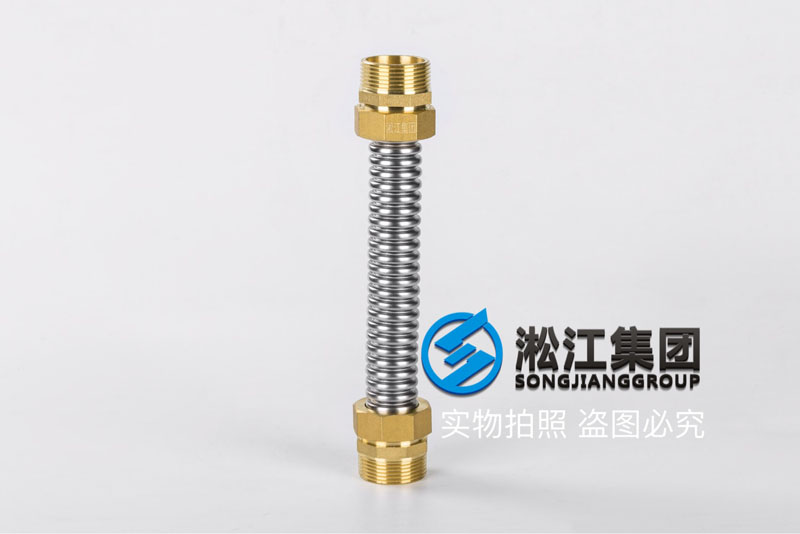

2.产品图片：见上图

3.产品结构：内螺纹接头+外丝

4.产品.点：无需焊接，可按需要长度自行装配

5.产品通径：DN10~DN50

6.制作长度：100mm~1000mm

7.产品材料：

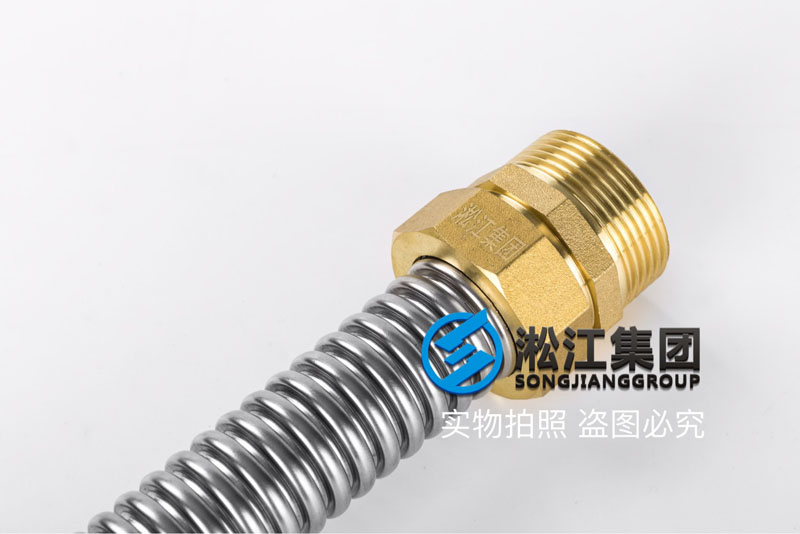

①六角接头：铜

②六角螺母：铜

③密封垫圈：硅橡胶

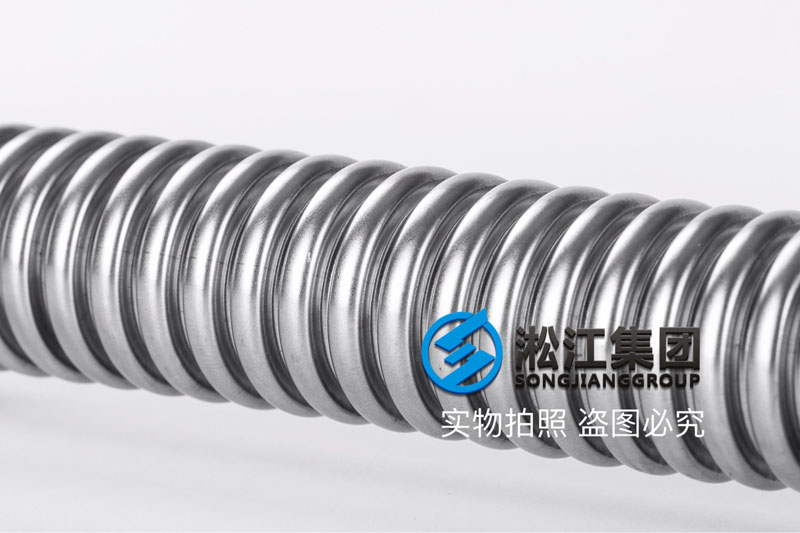

④波纹管：SUS304
Product introduction:

1. Product Name: DN32Metal soft connection of air conditioning

2. product picture: see the picture above

3. product structure: internal thread joint + outer wire

4. product features: without welding, it can be assembled according to the required length

5. product path: DN10~DN50

6. production length: 100mm~1000mm

7. product materials:

Six angle joint: Copper

Six angle nut: Copper

sealing washer: silicone rubber

Bellows: SUS304以上DN32空调金属软连接信息来源于上海淞江减震器集团有限公司官方网站金属软管产品中心，如需了解更多金属软管产品点击：金属软管
The above DN32 air conditioning metal soft connection information comes from the metal hose center of the official website of Shanghai Songjiang shock absorber Group Co., Ltd.
