JGD橡胶减震器安裝说明
来源：JGD橡胶减震器安裝说明 发布于：2018-11-14 12:02 浏览：

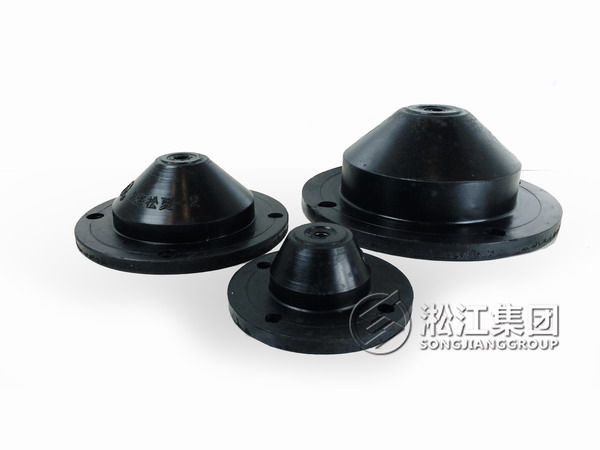

JGD橡胶减震器安裝說明
JGD Rubber shock absorber Installation instructions
安装前，请确认淞江集团橡胶减震器的型号和规格是否正确。
Before installation,make sure the model and the specification are correct.
安装说明
Installation guide
所需工具：M10、M12、M16、M18、M20开口扳手。
Required tools：M10、M12、M16、M18、M20 open wrenches.
检查附件是否齐全，橡胶减震器是否有缺陷或破损。（如图1）
Check the isolator and other accessories see if they are all completely or having any defects.(Fig 1)
将橡胶减震器放到设备的安装位置。（如图2）
Place the isolator on the correct installation position.(Fig 2)
锁紧螺母和垫片，确保设备和橡胶减震器固定到位。（如图3）
Fasten the nuts and washers to ensure the equipment feet holes are fixed to the isolator.(Fig 3)
JGD型橡胶减震器参数表：
JGD type rubber shock absorber parameter table:

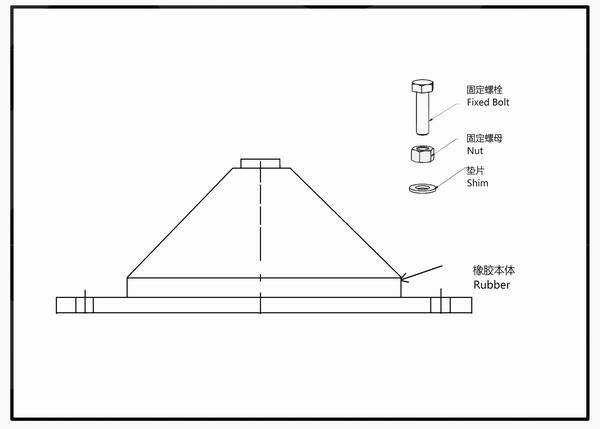

图1）检查附件是否齐全，橡胶减震器是否有缺陷或破损。
Fig 1）Check the isolator and other accessories see if they are all completely or having any defects.

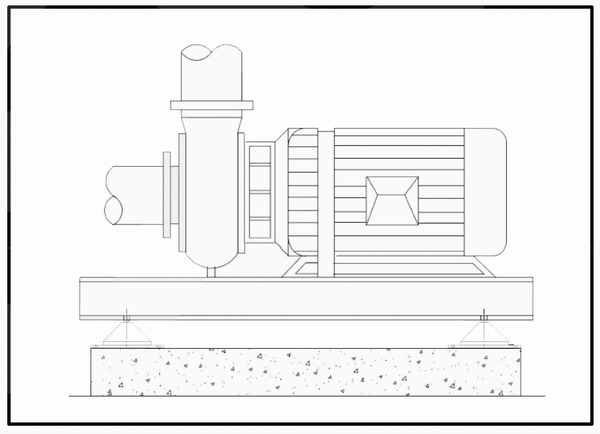

图2）将橡胶减震器放到设备的安装位置。
Fig 2）Place the isolator on the correct installation position.

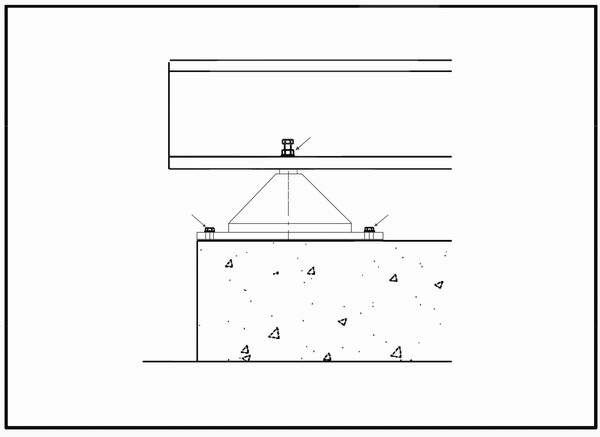

图3）锁紧螺母和垫片，确保设备和橡胶减震器固定到位。
Fig 3）Fasten the nuts and washers to ensure the equipment feet holes are fixed to the isolator.
点击下载：
JGD Rubber shock absorber Installation instructions
安装前，请确认淞江集团橡胶减震器的型号和规格是否正确。
Before installation,make sure the model and the specification are correct.
安装说明
Installation guide
所需工具：M10、M12、M16、M18、M20开口扳手。
Required tools：M10、M12、M16、M18、M20 open wrenches.
检查附件是否齐全，橡胶减震器是否有缺陷或破损。（如图1）
Check the isolator and other accessories see if they are all completely or having any defects.(Fig 1)
将橡胶减震器放到设备的安装位置。（如图2）
Place the isolator on the correct installation position.(Fig 2)
锁紧螺母和垫片，确保设备和橡胶减震器固定到位。（如图3）
Fasten the nuts and washers to ensure the equipment feet holes are fixed to the isolator.(Fig 3)

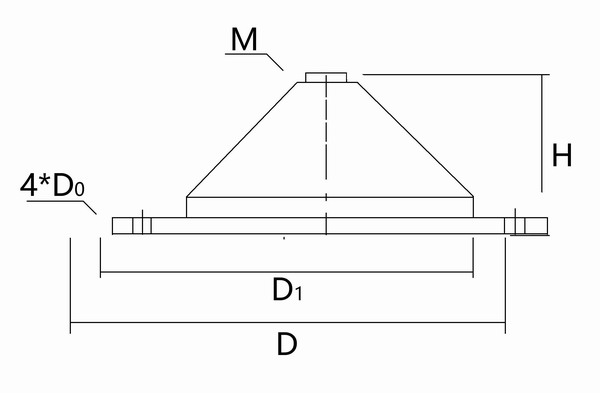

JGD型橡胶减震器结构图：
JGD type rubber shock absorber Structure drawing:
JGD型橡胶减震器参数表：
JGD type rubber shock absorber parameter table:
|
型号 Model |
外形尺寸 Outline size（mm） | 刚性 |
变形 Deformation |
固有频率 | 载荷 | ||||
| M | D | D1 | H | D0 | Kg/cm2 | Hz | kg | ||
| JGD-1 | 10 | 100 | 80 | 40 | 8.5 | 20 | 2~8 | 8~14 | 10~20 |
| JGD-2 | 12 | 150 | 130 | 60 | 8.5 | 60 | 4~12 | 7~12 | 40~80 |
| JGD-3 | 16 | 200 | 170 | 87 | 12.5 | 120 | 5~16 | 6~11 | 160~320 |
| JGD-4 | 20 | 290 | 260 | 120 | 12.5 | 300 | 8~24 | 5~9 | 640~1280 |
图1）检查附件是否齐全，橡胶减震器是否有缺陷或破损。
Fig 1）Check the isolator and other accessories see if they are all completely or having any defects.
图2）将橡胶减震器放到设备的安装位置。
Fig 2）Place the isolator on the correct installation position.
图3）锁紧螺母和垫片，确保设备和橡胶减震器固定到位。
Fig 3）Fasten the nuts and washers to ensure the equipment feet holes are fixed to the isolator.
