变压器CASE SHOW

BYQ型 干式变压器专用减震器

服务内容:BYQ型 干式变压器专用减震器

简介:矩阵式弹簧减震器 您还在为变压器的噪音而烦恼? 上海淞江减震器集团有限公司官方网站为您介绍:矩阵式弹簧减震器 您还在为变压器的噪音而烦恼?信息,淞江集团为干式变压器设计一款矩阵式弹簧减震器,主要......

矩阵式弹簧减震器 您还在为变压器的噪音而烦恼?
上海淞江减震器集团有限公司官方网站为您介绍:矩阵式弹簧减震器 您还在为变压器的噪音而烦恼?信息,淞江集团为干式变压器设计一款矩阵式弹簧减震器,主要用于新型机房变压器减震降噪,我们为众多局维项目配套变压器减震器。
BYQ型 干式变压器专用减震器
BYQ型 干式变压器专用减震器
BYQ型 干式变压器专用减震器
BYQ型矩阵式弹簧减震器介绍:
BYQ型弹簧减震器由多组大外径、大变形量弹簧、上下钢板及橡胶防滑垫组成;
主要适用于:现代化机房变压器,例如云数据中心变压器;
产品具有变形量大、性能稳定、隔震效果好、使用寿命长达10年以上;
隔震隔音效果好,可以将变压器隔震率90%以上,隔音量达到15~20dB;
减震器横向刚度与竖向刚度比值大于1.5,稳定性好;
安装施工简单方便,改造费用低;
BYQ型矩阵式弹簧减震器说明:
1、一个变压器使用2个;

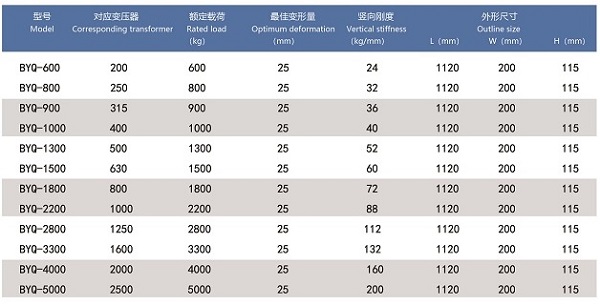

2、表格中对应变压器主要是针对铜芯变压器,如果是铝芯变压器需要计算,铝芯的轻很多;
3、安装前后效果提升90%;
4、货期:7天;
5、质保10年;
6、江浙沪支持上门安装服务(有江苏供电系统安装资质);
7、检测:夜间检测,包含两次检测(安装前后检测,上门安装用户包含此项);
8、单个产品大概在50kg左右;
9、干式变压器安装图纸下载;
BYQ型 干式变压器专用减震器
BYQ spring shock absorber is composed of several groups of large outer diameter, large deformation spring, upper and lower steel plates and rubber anti-skid pads;
Mainly applicable to: modern machine room transformer, such as cloud data center transformer;
The product has large deformation, stable performance, good isolation effect and service life of more than 10 years;
The isolation and sound insulation effect is good, the isolation rate of transformer can be more than 90%, and the isolation volume can reach 15 ~ 20dB;
The ratio of lateral stiffness to vertical stiffness is more than 1.5, and the stability is good;
The installation and construction are simple and convenient, and the transformation cost is low;
Explain:
1. Two for one transformer;
2. The corresponding transformer in the table is mainly for copper core transformer. If the aluminum core transformer needs to be calculated, the aluminum core is much lighter;
3. 90% improvement before and after installation;
4. Delivery period: 7 days;
5. 10 years warranty;
6. Jiangsu, Zhejiang and Shanghai support door-to-door installation service (with Jiangsu power supply system installation qualification);
7. Test: Night test, including two tests (before and after installation);
8. A single product is about 50kg;
BYQ型 干式变压器专用减震器
BYQ型 干式变压器专用减震器
