NRCASE SHOW

【NR】DN300单球橡胶接头“天然橡胶加强型”

服务内容:【NR】DN300单球橡胶接头“天然橡胶加强型”

简介:【NR】DN300单球橡胶接头“天然橡胶加强型” DN300 single ball rubber joint "natural rubber reinforced" 上海淞江减震器集团有限公司官方网站为您介绍:【NR】DN300单球橡胶接头“天然橡胶加强型”信息,淞江......

【NR】DN300单球橡胶接头“天然橡胶加强型”
DN300 single ball rubber joint "natural rubber reinforced"

上海淞江减震器集团有限公司官方网站为您介绍:【NR】DN300单球橡胶接头“天然橡胶加强型”信息,淞江集团为能源中心提供16kg加强型橡胶接头产品,主要用于冷水机组和循环泵,起到减震和降噪的作用,以下是详细介绍。
The official website of Shanghai Songjiang Shock Absorber Group Co., Ltd. introduces to you: [NR] DN300 single ball rubber joint "natural rubber reinforced" information, Songjiang Group provides 16KG reinforced rubber joint products for energy center, mainly used for water chillers and circulating pumps, to reduce vibration and noise. The following is a detailed introduction.

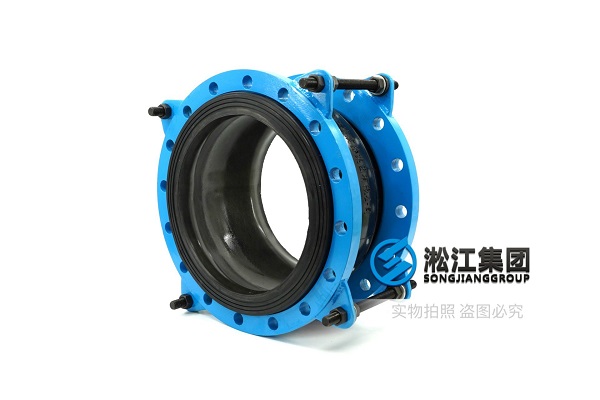

一、DN300加强型单球橡胶接头实物拍照:

【NR】DN300单球橡胶接头“天然橡胶加强型”
【NR】DN300单球橡胶接头“天然橡胶加强型”
【NR】DN300单球橡胶接头“天然橡胶加强型”
【NR】DN300单球橡胶接头“天然橡胶加强型”

二、DN300加强型单球橡胶接头介绍:

名称:单球橡胶接头 点击下载图纸
型号:KXT-NR
口径:DN300
压力:1.6Mpa
长度:245mm
橡胶材质:天然橡胶(云象 / 东风1#)
法兰材质:碳钢;另有球墨、不锈钢、PVC
【NR】DN300单球橡胶接头“天然橡胶加强型”
法兰标准:GB/T 9119-2000 (除此法兰标准之外,我厂还可以配套更多法兰标准,如需了解其他法兰标准请点击:橡胶接头法兰标准
适用介质:普通水、空调水、温度80度以下;(各种酸碱、油类、粉状等特殊介质不能用,要选择特殊材质才可以使用
其他介质:弱酸碱、120度高温请点击:EPDM三元乙丙橡胶接头
液压油介质请点击:NBR丁腈橡胶接头
强酸碱、航空煤油、汽油、柴油请点击:PTFE四氟橡胶接头
使用优点:减震、降噪、保护水泵设备的长期使用,降低维修成本。
质保期限:36个月
相关链接:橡胶接头性能检测报告
生产厂家:上海淞江减震器集团有限公司

资质证书:合格证、质保书、检验报告、德国莱茵TUV认证、国家型式试验报告、第三方性能检测报告、材质报告。

安装教程链接:橡胶接头安装说明

Name: single ball rubber joint
Model: KXT-NR
Caliber: DN300
Pressure: 1.6Mpa
Length: 245mm
Axial compression: 25mm
Axial tension: 14mm
Lateral displacement: 15mm
Deviation angle: 15 degrees.
Rubber material: natural rubber (cloud Elephant / Dongfeng 1#)
Flange material: carbon steel / ductile QT450 / stainless steel.
Flange standard: GB/T 9119-2000 (in addition to this flange standard, our factory can also support more flange standards, if you need to know other flange standards, please click: rubber joint flange standard)
Applicable media: ordinary water, air conditioning water, temperature below 80 degrees; (various acid-base, oil, powder and other special media can not be used, to select special materials can be used;)
Other media: weak acid and alkali, 120 degree high temperature, please click: EPDM rubber joint;
Hydraulic oil medium please click: NBR rubber joint;
Strong acid base, aviation kerosene, gasoline and diesel oil please click: PTFE rubber joint.
Advantages: shock absorption, noise reduction, protection of water pump equipment for long-term use, reduce maintenance costs.
Warranty period: 36 months.
Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.
Qualification Certificate: Qualification Certificate, Quality Assurance Certificate, Inspection Report, TS Pressure Pipeline Production License of Rubber Joint Industry, National Type Test Report, Third Party Performance Test Report, Material Report.
三、DN300加强型单球橡胶接头发货现场:
【NR】DN300单球橡胶接头“天然橡胶加强型”
【NR】DN300单球橡胶接头“天然橡胶加强型”

四 、加强型单球橡胶接头工厂介绍:

【NR】DN300单球橡胶接头“天然橡胶加强型”
【NR】DN300单球橡胶接头“天然橡胶加强型”
【NR】DN300单球橡胶接头“天然橡胶加强型”
【NR】DN300单球橡胶接头“天然橡胶加强型”

相关链接:橡胶接头工程案例
