FKMCASE SHOW

【FKM】DN65氟橡胶软接头“实物拍照”

服务内容:【FKM】DN65氟橡胶软接头“实物拍照”

简介:【FKM】DN65氟橡胶软接头“实物拍照” DN65 fluoro rubber soft connector "photo in kind" 上海淞江减震器集团有限公司官方网站为您介绍:【FKM】DN65氟橡胶软接头“实物拍照”信息,淞江集团为客户提供氟橡胶......

【FKM】DN65氟橡胶软接头“实物拍照”
DN65 fluoro rubber soft connector "photo in kind"

上海淞江减震器集团有限公司官方网站为您介绍:【FKM】DN65氟橡胶软接头“实物拍照”信息,淞江集团为客户提供氟橡胶软接头实物拍照,让客户进一步通过实物拍出来的照片来了解氟橡胶软接头产品的外观,以下是详细介绍。
The official website of Shanghai Meijiang Shock Absorber Group Co., Ltd. [FKM] DN65 Fluororubber Soft Joint "physical photography" information, Meijiang Group provides customers with fluororubber soft joint physical photography, so that customers can further understand the appearance of fluororubber soft joint products through physical photography, the following is a detailed introduction.

氟橡胶的耐酸性能比三元乙丙橡胶还要好,而且也可以耐高温120度以下,是橡胶中耐酸和耐高温性很好的材料,号称橡胶之王。
Fluoroelastomer has better acid and alkali resistance than EPDM, and can withstand high temperature below 120 degrees. It is a good material for acid and alkali resistance and high temperature resistance in rubber, so it is called the king of rubber.

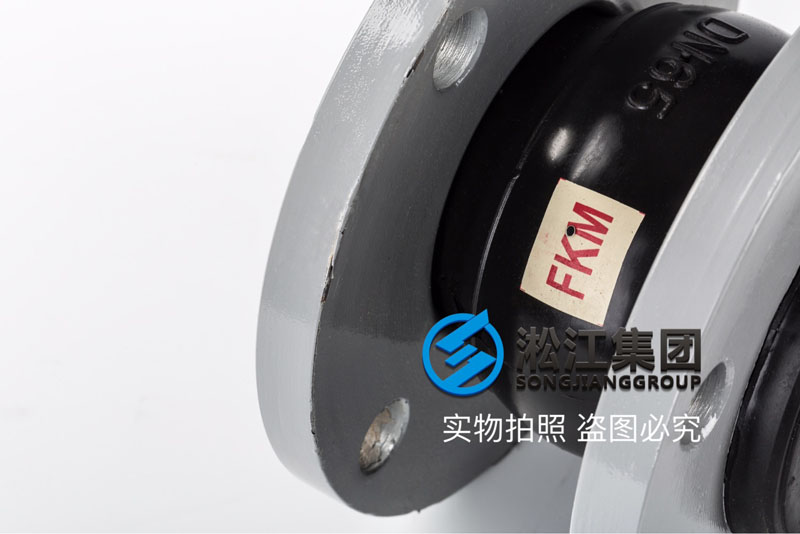

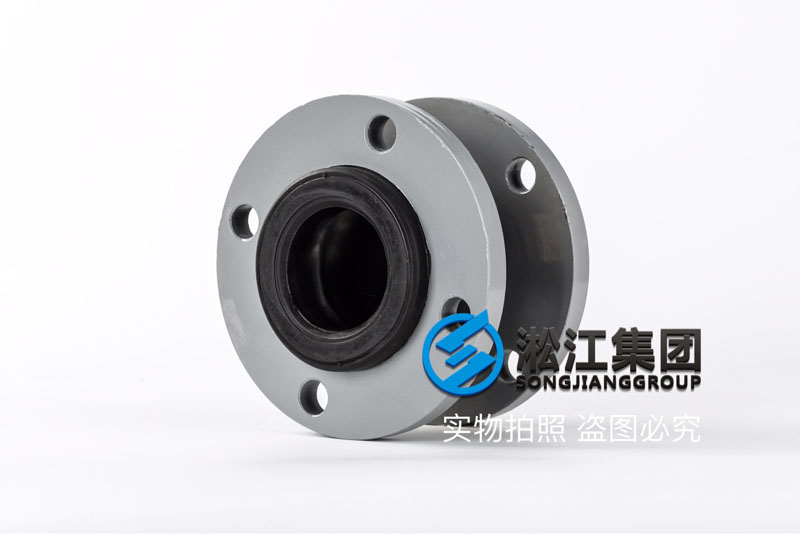

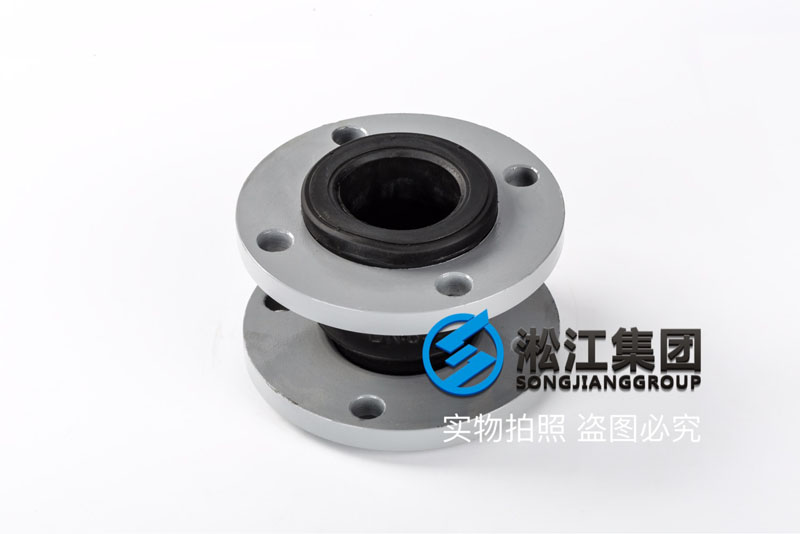

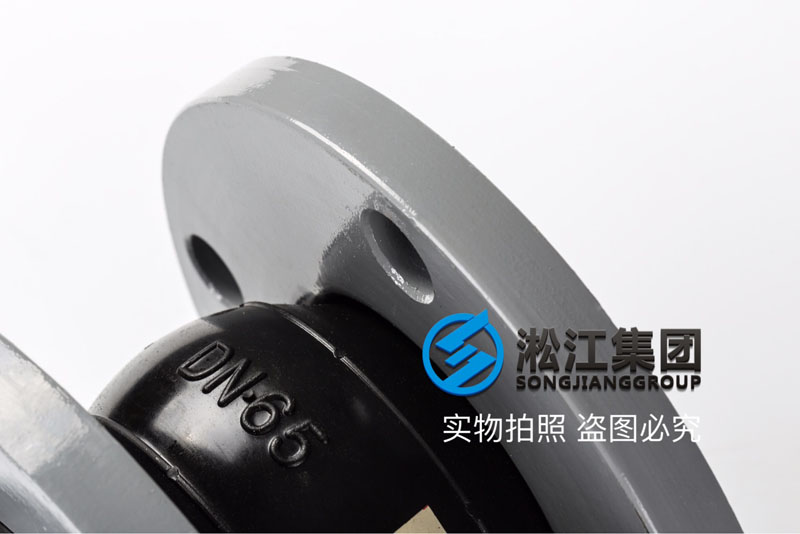

一、DN65氟橡胶软接头实物拍照:

【FKM】DN65氟橡胶软接头“实物拍照”
【FKM】DN65氟橡胶软接头“实物拍照”
【FKM】DN65氟橡胶软接头“实物拍照”
【FKM】DN65氟橡胶软接头“实物拍照”
【FKM】DN65氟橡胶软接头“实物拍照”
二、DN65氟橡胶软接头参数介绍:
名称:氟橡胶软接头
型号:DN65
安装长度:115mm
轴向压缩:12mm
轴向拉伸:6mm
横向位移:10mm
偏转角度:15°
标准:GB/T 9119-2000
压力:PN16
法兰:碳钢 / 球墨
介质:强酸、高温120度以下
质保:1年
橡胶材质:氟橡胶(FKM)
使用优点:减震、降噪、保护管道设备的长期使用,降低维修成本。
生产厂家:上海淞江减震器集团有限公司
了解该产品更多型号参数表请点击:【样册P33】KXT型可曲挠橡胶接头
资质证书:合格证、质保书、检验报告、德国莱茵TUV认证、国家型式试验报告、第三方性能检测报告、材质报告等。
淞江集团橡胶接头生产流程:原材料检测-小料自动配料-大料自动配料-自动混炼-自动成筒-自动成型-自动硫化-质量检测-实验室检测-交付客户
Name: fluorine rubber soft joint
Model: DN65
Installation length: 115mm
Axial compression: 12mm
Axial tension: 6mm
Lateral displacement: 10mm
Deflection angle: 15 degrees.
Standard: GB/T 9119-2000
Pressure: PN16
Flange: carbon steel / spheroidal graphite
Medium: acid base, high temperature below 120 degrees.
Warranty: 1 years
Rubber material: fluorine rubber (FKM)
Advantages: shock absorption, noise reduction, protection of pipeline equipment for long-term use, and reduction of maintenance costs.
Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.
Qualification Certificate: Qualification Certificate, Quality Guarantee, Inspection Report, TS Pressure Pipeline Production License of Rubber Joint Industry, National Type Test Report, Third Party Performance Test Report, Material Report, etc.
Production Process of Rubber Joints in Songjiang Group: Raw Material Testing - Automatic Blending of Small Material - Automatic Blending of Large Material - Automatic Mixing - Automatic Barrel Forming - Automatic Forming - Automatic Vulcanization - Quality Testing - Laboratory Testing - Delivery to Customers

三、DN65氟橡胶软接头公司介绍:
Introduction of Songjiang group

【FKM】DN65氟橡胶软接头“实物拍照”
【FKM】DN65氟橡胶软接头“实物拍照”
【FKM】DN65氟橡胶软接头“实物拍照”
【FKM】DN65氟橡胶软接头“实物拍照”

除了氟橡胶可以耐强酸之外,还有一款内衬四氟橡胶接头也可以耐强酸碱,内衬四氟耐强酸碱的性能比氟橡胶还要好,价格和氟橡胶价格都差不多,如需了解请点击:PTFE内衬聚四氟乙烯橡胶接头
