【FKM】DN125氟胶单球橡胶接头“生产厂家”

服务内容:【FKM】DN125氟胶单球橡胶接头“生产厂家”

简介:【FKM】DN125氟胶单球橡胶接头“生产厂家” DN125 fluorine rubber single ball rubber connector "manufacturer" 上海淞江减震器集团有限公司官方网站为您介绍:【FKM】DN125氟胶单球橡胶接头“生产厂家”信息......

【FKM】DN125氟胶单球橡胶接头“生产厂家”
DN125 fluorine rubber single ball rubber connector "manufacturer"

上海淞江减震器集团有限公司官方网站为您介绍:【FKM】DN125氟胶单球橡胶接头“生产厂家”信息,淞江集团为客户提供氟胶单球橡胶接头,采用氟橡胶生产,具有良好的耐酸碱和耐高温效果,主要用于化工厂管道系统。
The official website of Shanghai Meijiang Shock Absorber Group Co., Ltd. [FKM] DN125 Fluorine rubber single ball rubber joint "manufacturer" information, Meijiang Group to provide customers with fluorine rubber single ball rubber joint, using fluorine rubber production, with good acid and alkali resistance and high temperature resistance, mainly used in chemical plant pipeline system.

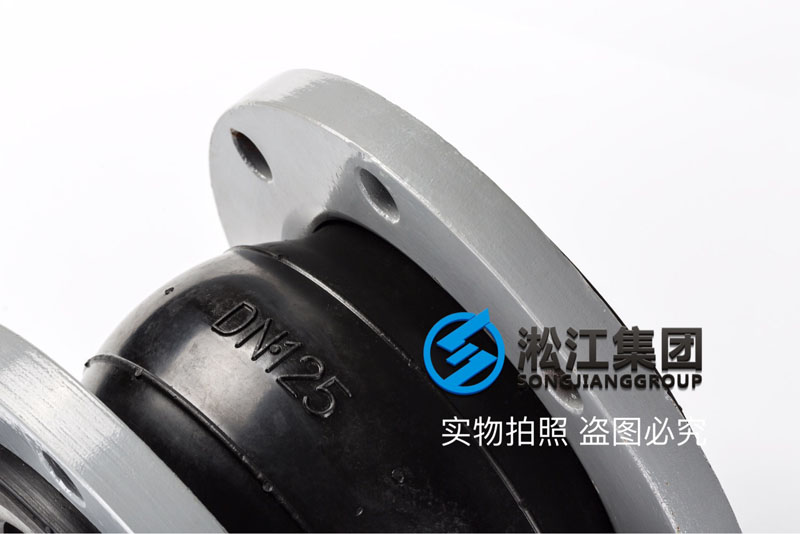

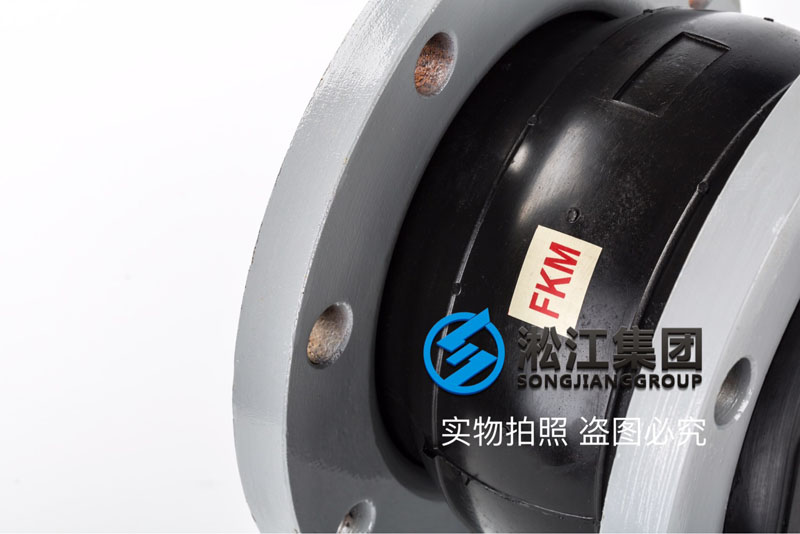

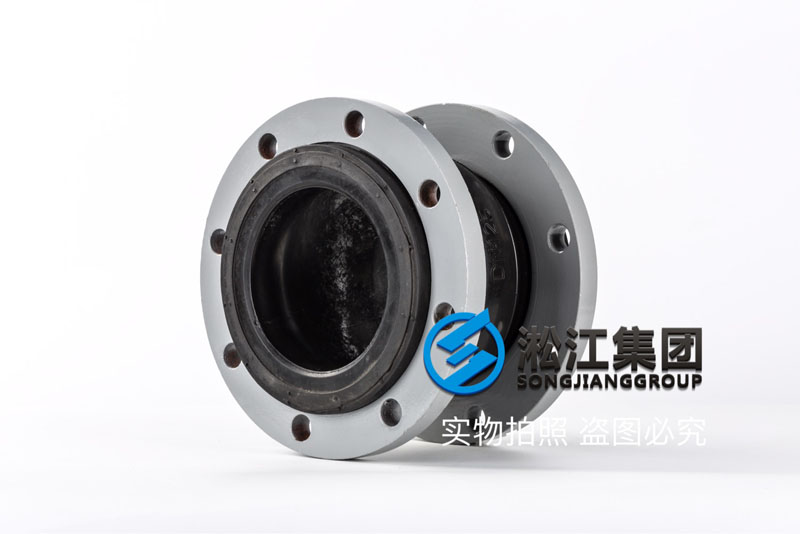

一、DN125氟胶单球橡胶接头实物拍照:

【FKM】DN125氟胶单球橡胶接头“生产厂家”
【FKM】DN125氟胶单球橡胶接头“生产厂家”
【FKM】DN125氟胶单球橡胶接头“生产厂家”
【FKM】DN125氟胶单球橡胶接头“生产厂家”

二、DN125氟胶单球橡胶接头参数介绍:

名称:氟胶单球橡胶接头
型号:DN125
安装长度:165mm
轴向压缩:18mm
轴向伸长:10mm
轴向拉伸:10mm
横向位移:12mm
偏转角度:15°
标准:GB/T 9119-2000
压力:PN16
法兰:碳钢 / 球墨
介质:酸碱、高温140度以下
质保:1年
橡胶材质:氟橡胶(FKM)
了解该产品更多型号参数表请点击:【样册P33】KXT型可曲挠橡胶接头
使用优点:减震、降噪、保护管道设备的长期使用,降低维修成本。
生产厂家:上海淞江减震器集团有限公司
资质证书:合格证、质保书、检验报告、德国莱茵TUV认证、国家型式试验报告、第三方性能检测报告、材质报告等。
Name: fluorine rubber single ball rubber joint
Model: DN125
Installation length: 165mm
Axial compression: 18mm
Axial elongation: 10mm
Axial tension: 10mm
Lateral displacement: 12mm
Deflection angle: 15 degrees.
Standard: GB/T 9119-2000
Pressure: PN16
Flange: carbon steel / spheroidal graphite
Medium: acid base, high temperature below 140 degrees.
Warranty: 1 years
Rubber material: fluorine rubber (FKM)
Advantages: shock absorption, noise reduction, protection of pipeline equipment for long-term use, and reduction of maintenance costs.
Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.
Qualification Certificate: Qualification Certificate, Quality Guarantee, Inspection Report, TS Pressure Pipeline Production License of Rubber Joint Industry, National Type Test Report, Third Party Performance Test Report, Material Report, etc.

三、DN125氟胶单球橡胶接头公司介绍:
The following is the introduction of Songjiang group

【FKM】DN125氟胶单球橡胶接头“生产厂家”
【FKM】DN125氟胶单球橡胶接头“生产厂家”
【FKM】DN125氟胶单球橡胶接头“生产厂家”
【FKM】DN125氟胶单球橡胶接头“生产厂家”
