ANSICASE SHOW

【ANSI】DN40美标橡胶柔性接管“150bar”

服务内容:【ANSI】DN40美标橡胶柔性接管“150bar”

简介:【ANSI】DN40美标橡胶柔性接管“150bar” DN40 American rubber flexible takeover "150bar" 上海淞江减震器集团有限公司官方网站为您介绍:【ANSI】DN40美标橡胶柔性接管“150bar”信息,淞江集团为众多客户提......

【ANSI】DN40美标橡胶柔性接管“150bar”
DN40 American rubber flexible takeover "150bar"

上海淞江减震器集团有限公司官方网站为您介绍:【ANSI】DN40美标橡胶柔性接管“150bar”信息,淞江集团为众多客户提供美洲标准橡胶柔性接管产品,主要采用美标150bar法兰标准,橡胶采用长度130mm标准,具有良好的减震和降噪效果。
The official website of Shanghai Meijiang Shock Absorber Group Co., Ltd. [ANSI] DN40 U.S. standard rubber flexible takeover "150bar" information, Meijiang Group provides many customers with American standard rubber flexible takeover products, mainly using U.S. standard 150 bar flange standard, rubber using 130mm length standard, with good shock absorption and noise reduction Effect.

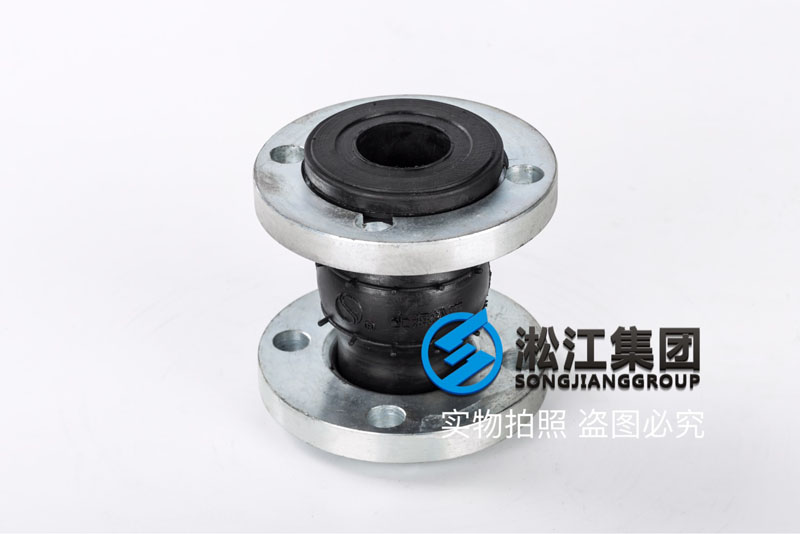

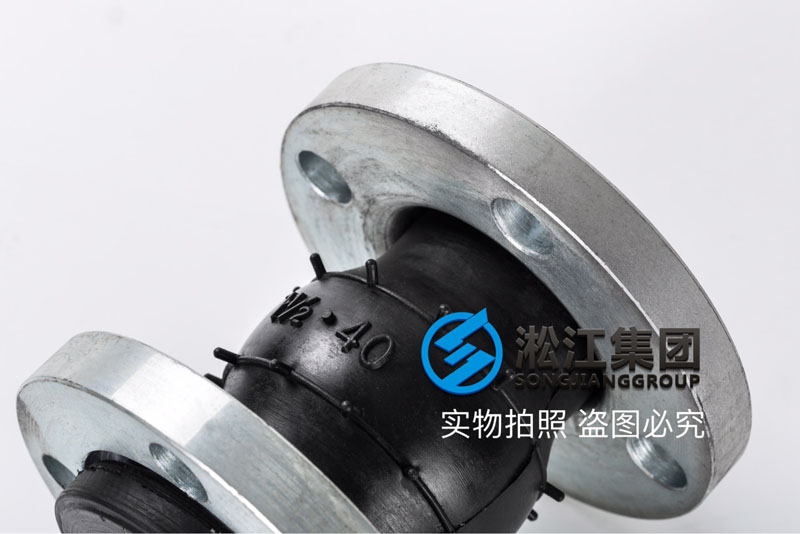

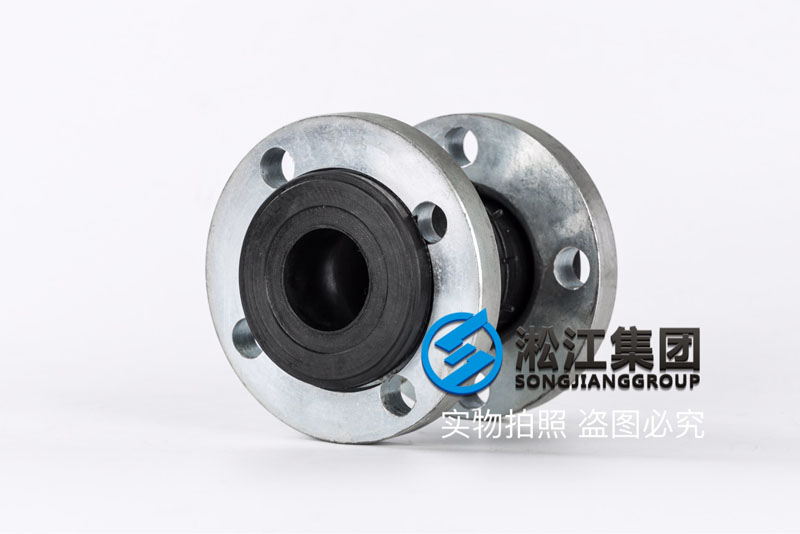

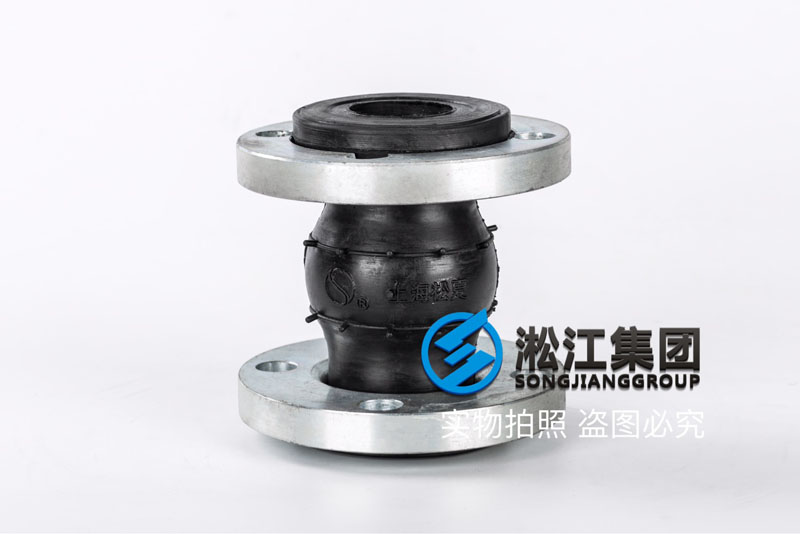

一、150bar美标橡胶柔性接管实物拍照:
【ANSI】DN40美标橡胶柔性接管“150bar”
【ANSI】DN40美标橡胶柔性接管“150bar”
【ANSI】DN40美标橡胶柔性接管“150bar”
【ANSI】DN40美标橡胶柔性接管“150bar”
二、150bar美标橡胶柔性接管基本信息:
名称:美标柔性接管
型号:ANSI-150LB
口径:DN40(1 1/2 寸)
质保:3年
优点:减震、降噪、补偿管道、可偏转、可位移。
介质:海水,120度以下弱酸碱。
生产厂家:上海淞江减震器集团有限公司
了解该产品更多型号参数表请点击:【样册P41】美洲标准橡胶膨胀节
Essential information:
Name: American rubber expansion joint
Model: ANSI-150LB
Caliber: DN40 (1 1/2 inches)
Warranty: 3 years
Advantages: shock absorption, noise reduction, compensation for pipeline, deflection and displacement.
Medium: sea water, weak acid and base below 120 degrees.
Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.
橡胶性能参数:
安装长度:130mm(150mm)
轴向拉伸:6mm
轴向压缩:8mm
横向位移:10mm
偏转角度:16°

橡胶:三元乙丙橡胶(淞江集团所有三元乙丙橡胶全部采用三井4045,含量在50%左右,有材质证明,有含量检测报告,也有国家型式试验中心的产品检测报告和性能检测报告等证书。)

Rubber performance parameters:
Installation length: 130mm (150mm)
Axial tension: 6mm
Axial compression: 8mm
Lateral displacement: 10mm
Deflection angle: 16 degrees.
Rubber: Ethylene-propylene-diene rubber (all the Ethylene-propylene-diene rubber of Songjiang Group adopts Mitsui 4045, the content is about 50%, there are material proof, there are content testing reports, there are also national type testing center product testing reports and performance testing reports and other certificates.)
法兰参数:
标准:ANSI-150LB
法兰外径:130mm
螺栓孔中心距:98.5mm
螺栓孔径:16mm
螺栓孔数:4
压力:150LB(PN20)
法兰:碳钢(Q235)
Flange parameters:
Standard: ANSI-150LB
Flange diameter: 130mm
Center distance of bolt hole: 98.5mm
Bolt diameter: 16mm
Bolt hole number: 4
Pressure: 150LB (PN20)
Flange: carbon steel (Q235)

三、150bar美标橡胶柔性接管发货现场:

【ANSI】DN40美标橡胶柔性接管“150bar”

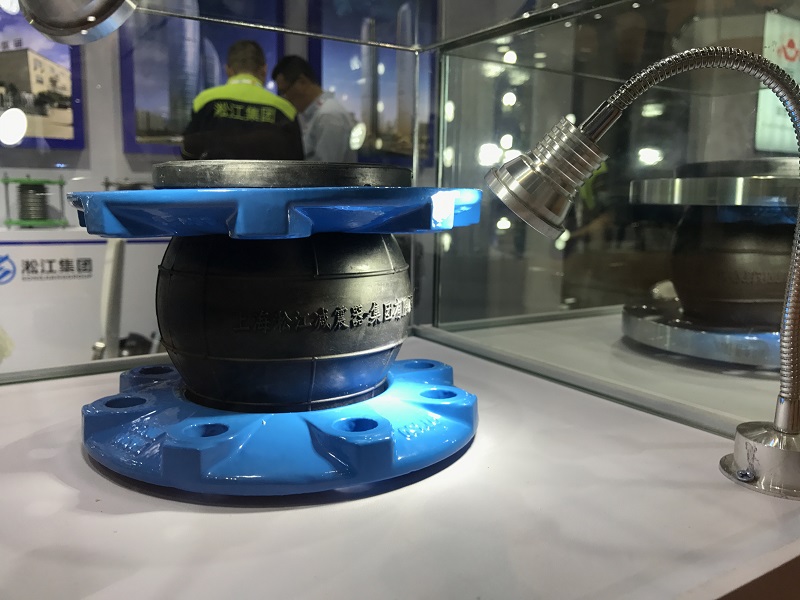

四、150bar美标橡胶柔性接管工厂介绍:

【ANSI】DN40美标橡胶柔性接管“150bar”
【ANSI】DN40美标橡胶柔性接管“150bar”
【ANSI】DN40美标橡胶柔性接管“150bar”
【ANSI】DN40美标橡胶柔性接管“150bar”
