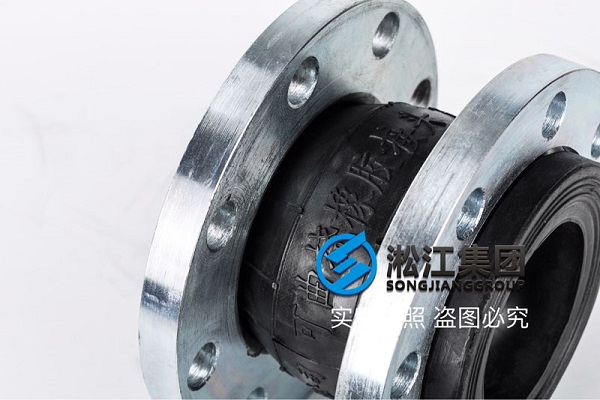

【DIN】DN80单球德标
橡胶接头“DIN2501PN16工厂”
DN80 single ball standard rubber joint "DIN2501PN16 factory"
上海淞江减震器集团有限公司官方网站为您介绍：【DIN】DN80单球德标橡胶接头“DIN2501PN16工厂”信息，淞江集团为众多企业提*德*DIN2501橡胶接头标准的产品，法兰全部采用碳钢材质，橡胶采用天然橡胶，以下是详细介绍。
The official website of Shanghai Meijiang Shock Absorber Group Co., Ltd. [DIN] DN80 single ball German standard rubber joint "DIN2501PN16 factory" information, Meijiang Group for many enterprises to provide German DIN2501 rubber joint standard products, flanges are all carbon steel, rubber using natural rubber, the following is a detailed introduction.
*内橡胶接头行业TS压力管道生产许可单位，TS编号：TS2731B90-2020
Domestic rubber joint industry TS pressure pipe production license unit, TS number: TS2731B90-2020
名称：单球德标橡胶接头
型号：DN80
安装长度：135mm
轴向压缩：12mm
轴向拉伸：6mm
横向位移：10mm
偏转角度：15°
标准：DIN 2501
压力：PN16
法兰：碳钢（Q235）
介质：普通水、
质保：3年
橡胶材质：
使用优点：减震、降噪、保护冷水机组的长期使用，降低维修成本。
生产厂家：上海淞江减震器集团有限公司
资质证书：合格证、质保书、检验报告、橡胶接头行业TS压力管道生产许可证、*家型式试验报告、*三方性能检测报告、含量成分检测报告。
Name: single ball standard rubber joint
Model: DN80
Installation length: 135mm
Axial compression: 12mm
Axial tension: 6mm
Lateral displacement: 10mm
Deflection angle: 15 degrees.
Standard: DIN 2501
Pressure: PN16
Flange: carbon steel (Q235)
Medium: ordinary water,
Warranty: 3 years
Rubber Material:
Advantages: shock absorption, noise reduction, protection of the long of chillers, and reduction of maintenance costs.
Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.
Qualification Certificate: Qualification Certificate, Quality Guarantee, Inspection Report, TS Pressure Pipeline Production License of Rubber Joint Industry, National Type Test Report, Third Party Performance Test Report, Content Component Test Report.
