【PVC】DN100单球PVC法兰橡胶接头“海洋馆维生系统”

周期:2018.8.4

服务内容:【PVC】DN100单球PVC法兰橡胶接头“海洋馆维生系统”

简介:上海淞江减震器集团有限公司官方网站为您介绍:【PVC】DN100单球PVC法兰橡胶接头“海洋馆维生系统”信息,淞江集团为众多海洋馆维生系统提供各种管道减震器产品,以下是单球PVC法兰橡胶接头介绍。


【PVC】DN100单球PVC法兰橡胶接头“海洋馆维生系统”
DN100 single ball PVC flange rubber joint "aquarium maintenance system"

上海淞江减震器集团有限公司官方网站为您介绍:【PVC】DN100单球PVC法兰橡胶接头“海洋馆维生系统”信息,淞江集团为众多海洋馆维生系统提*各种管道减震器产品,以下是单球PVC法兰橡胶接头介绍。
The official website of Shanghai Songjiang shock absorber Group Co., Ltd. introduces you: [PVC] DN100 single ball PVC flange rubber joint "marine Pavilion maintenance system" information, Songjiang group provides various pipeline shock absorbers for many marine museum maintenance systems, the following is the single ball PVC flange rubber joint introduction.

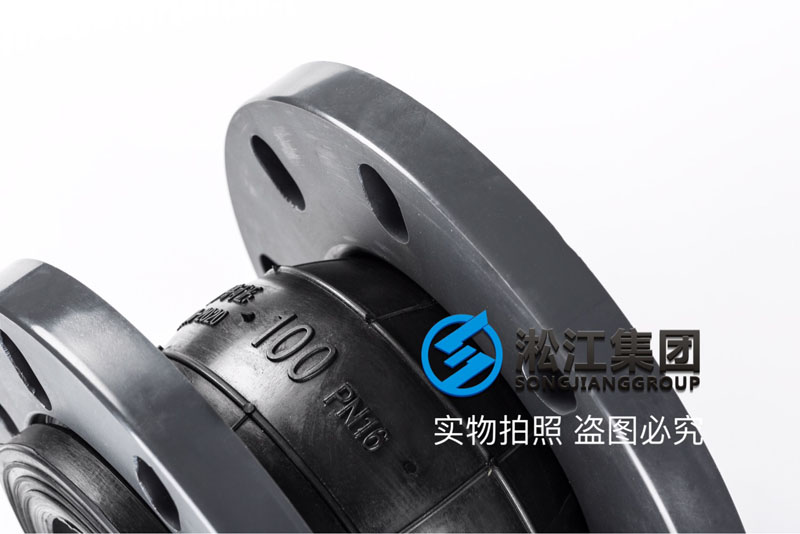

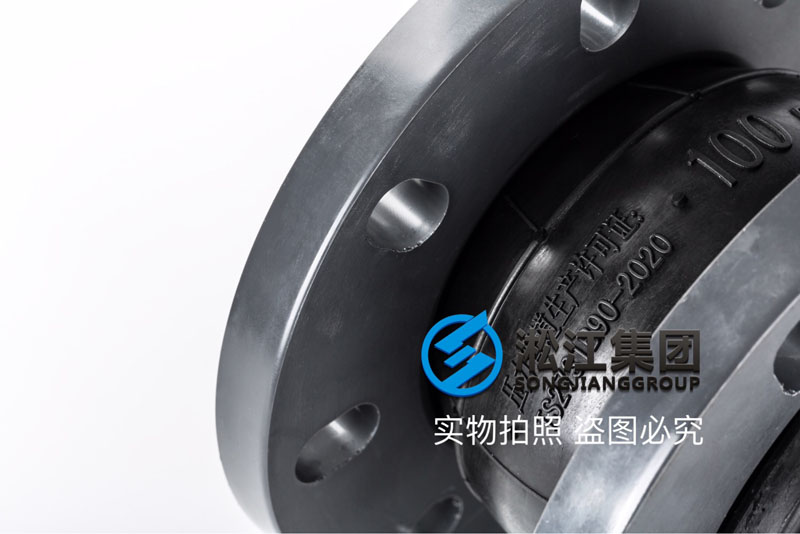

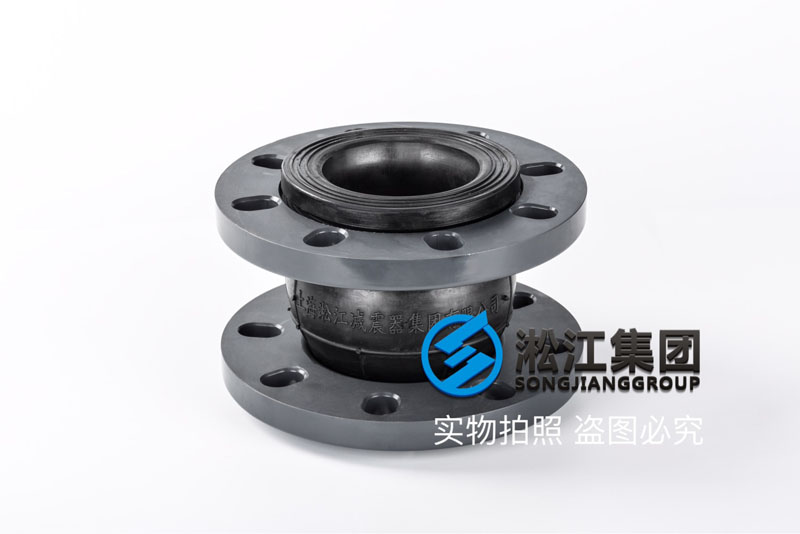

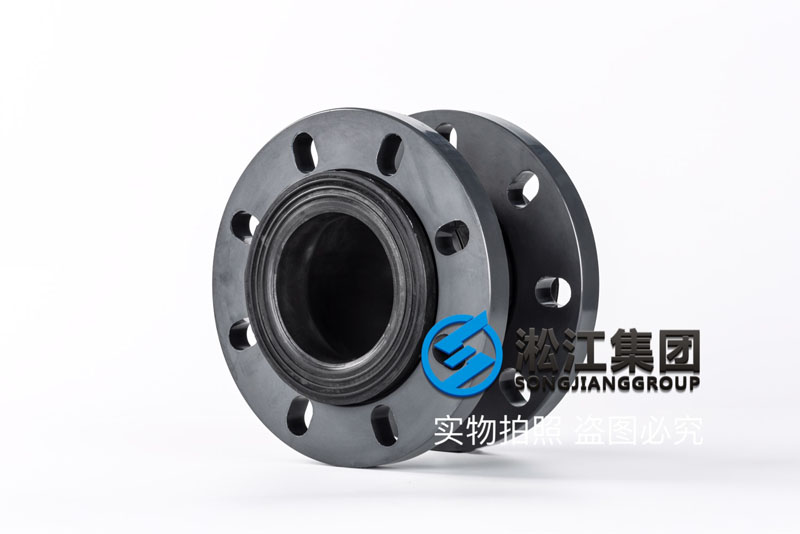

【PVC】DN100单球PVC法兰橡胶接头“海洋馆维生系统”










名称:单球PVC法兰橡胶接头
型号:KXT-PVC-EPDM
规格:DN100
压力:PN16
长度:150mm
轴向压缩:18mm
轴向拉伸:10mm
横向位移:12mm
偏转角度:15°
内层胶:三元乙丙橡胶(全部采用日本三井4045,含胶量达到46%左右,有*三方材料报告、含量检测报告等资质证明文件。)
外层胶:三元乙丙橡胶(全部采用日本三井4045,含胶量达到46%左右,有*三方材料报告、含量检测报告等资质证明文件。)
骨架层:尼龙帘布
增压环:多股钢丝
法兰:PVC
适用介质:海水、弱酸碱
适用温度:
产品证书:材质证明书、含量检测报告、产品压力检测报告、*家型式试验证书
资质证书:橡胶接头行业TS压力管道生产许可证、ISO9001-2015*际质量体系认证、ISO1400:2004环境管理体系认证、OHSAS18001:2007职业健康安全管理体系认证、*种设备型式试验证书等。
生产厂家:上海淞江减震器集团有限公司
Name: single ball PVC flange rubber joint
Model: KXT-PVC-EPDM
Specification: DN100
Pressure: PN16
Length: 150mm
Axial compression: 18mm
Axial tension: 10mm
Lateral displacement: 12mm
Deflection angle: 15 degrees
Inner rubber: three ethylene propylene rubber (total use of Japan's Mitsui 4045, containing about 46% of the glue, there are third party materials report, content testing report and other certification documents.)
Outer adhesive: three diethylene propylene rubber (total use of Japan's Mitsui 4045, containing about 46% of the glue, there are third party materials report, content testing report, etc.)
Skeleton layer: nylon cord
Turbocharging ring: multi strand wire
Flange: PVC
Suitable medium: sea water, weak acid and alkali
Applicable temperature: below 120 degrees
Product certificate: material certificate, content test report, product pressure test report, national type test certificate.
Qualification certificate: rubber joint industry TS pressure pipeline production license, ISO9001-2015 international quality system certification, ISO1400:2004 environmental management system certification, OHSAS18001:2007 occupational health and safety management system certification, special equipment type test certificates and so on.
Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.

性能*点:体积小、重量轻、弹性好、安装维修方便。安装时可产生横向、轴向、角向位移,不受管道不通心,法兰不平行的限制。工作时可降低结构传递噪音,吸振能力强。具有耐压高、弹性好、位移量大、平衡管道偏差、吸收振动、降低噪音效果好、安装方便,还可以大大降低管道系统的震动和噪声,可从根本上解决各类管路的接口位移,轴向伸缩及不同心度等问题.橡胶原材料属于.性橡胶,密封性好,重量轻,安装维修方便、使用寿命长,但避免与锋利金属器械接触,以免刺破橡胶管体。
Performance characteristics: small size, light weight, good elasticity, easy installation and maintenance. During installation, lateral, axial and angular displacement can be generated, which is not restricted by the unparallelism of the pipeline and the uneven flange. When working, the transmission noise and vibration absorption ability of the structure can be reduced. With high pressure, good elasticity, large displacement, balance pipe deviation, absorption and vibration, good effect of noise reduction and easy installation, it can also greatly reduce the vibration and noise of the pipeline system. It can fundamentally solve the problems of the interface displacement, axial expansion and different heart degree of various pipelines. Rubber raw materials belong to the rubber and sealing property. Good, light weight, easy installation and maintenance, long, but avoid contact with sharp metal tools, so as not to pierce the rubber tube.
