【镀锌】DN125单球镀锌法兰橡胶接头“质保3年”
DN125 single ball galvanized flange rubber joint "warranty for 3 years"
上海淞江减震器集团有限公司官方网站为您介绍：【镀锌】DN125单球镀锌法兰橡胶接头“质保3年”信息，淞江集团生产的单球镀锌法兰橡胶接头采用正宗原料橡胶生产，不采用再生橡胶成分，支持检测，质保3年，好材料不是说说而已，欢迎新老客户到淞江集团南通工厂实地考察，进*步了解橡胶接头，没有对比就没有伤害。
Shanghai Songjiang shock absorber Group Co., Ltd. official website for you: [galvanized] DN125 single ball galvanized flanged rubber joint "warranty 3 years" information, Songjiang Group production of single ball galvanized flange rubber joint use authentic raw rubber production, no recycled rubber components, support inspection, quality assurance for 3 years, good materials are not said Just say it, welcome new and old customers to the Songjiang group Nantong factory site inspection, to further understand the rubber joints, no comparison, no harm.
*内橡胶接头行业TS压力管道生产许可单位，TS编号：TS2731B90-2020
Domestic rubber joint industry TS pressure pipe production license unit, TS number: TS2731B90-2020

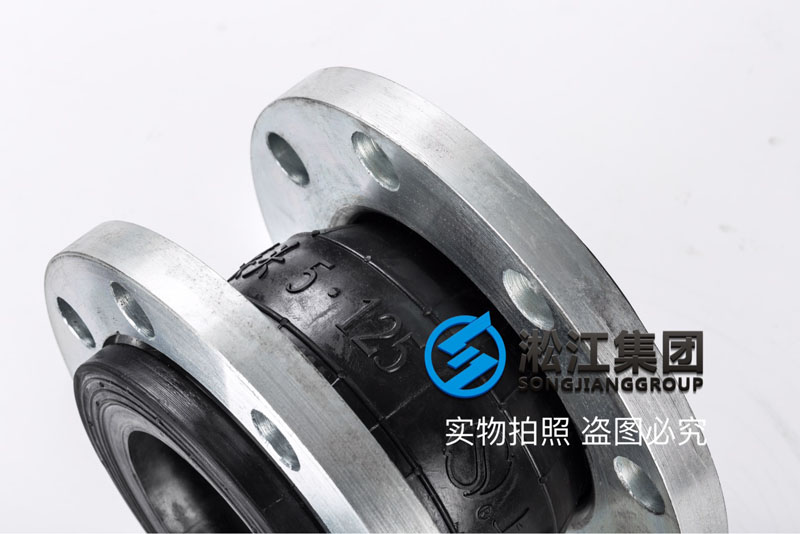

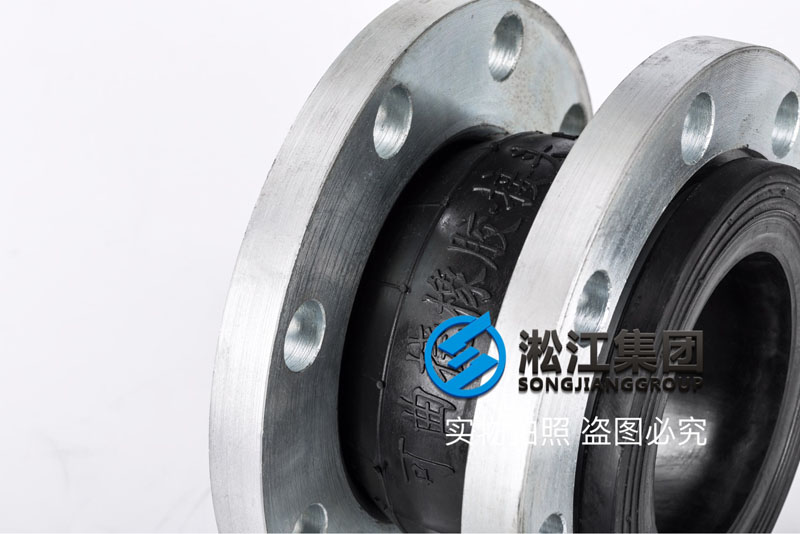

名称：单球镀锌法兰橡胶接头
型号：KXT-DX
口径：DN125
压力：PN10、PN16、PN25
长度：165mm
伸长：10mm
压缩：18mm
横向位移：12mm
偏转角度：15°
法兰材质：碳钢锻打（镀锌处理）
橡胶材质：
使用温度：-10° ~ 80°
法兰标准：GB/T9119-2000
性能*点：
1、体积小、重量轻、弹性好、安装维修方便。
2、安装时可产生横向、轴向、角向位移,不受管道不通心，法兰不平行的限制。
3、工作时可降低结构传递噪音,吸振能力强。
4、具有耐压高、弹性好、位移量大、平衡管道偏差、吸收振动、降低噪音效果好、安装方便,还可以大大降低管道系统的震动和噪声,可从根本上解决各类管路的接口位移,轴向伸缩及不同心度等问题.橡胶原材料属于.性橡胶,密封性好,重量轻,安装维修方便、使用寿命长,但避免与锋利金属器械接触,以免刺破橡胶管体。
相关证书：合格证、质保书、上海市质量技术监督局检验报告、*家型式试验中心性能检测报告、ISO9001-2005证书、材质证明证书、使用说明等。
Name: single ball galvanized flanged rubber joint
Model: KXT-DX
Caliber: DN125
Pressure: PN10, PN16, PN25
Length: 165mm
Elongation: 10mm
Compression: 18mm
Lateral displacement: 12mm
Deflection angle: 15 degrees
Flange material: carbon steel forging (Galvanized treatment)
*
Use temperature: *
Performance characteristics:
1, small volume, light weight, good elasticity, easy installation and maintenance.
2. When installing, lateral, axial and angular displacement can be generated, which is not restricted by the unsmooth core of the pipeline, and the flange is not parallel.
3, when working, it can reduce the transmission noise and strong vibration absorption ability.
4, with high pressure, good elasticity, large displacement, balance pipe deviation, absorption and vibration, good effect of noise reduction and easy installation, it can also greatly reduce the vibration and noise of the pipeline system. It can fundamentally solve the problems of the interface displacement, axial expansion and dissimilarity of various pipelines. Rubber raw material belongs to the rubber, seal. Good quality, light weight, easy installation and maintenance, long, but avoid contact with sharp metal tools, so as not to pierce the rubber tube.
Relevant certificates: Certificate of qualification, quality assurance book, inspection report of Shanghai quality and Technical Supervision Bureau, performance test report of national type test center, ISO9001-2005 certificate, certificate of material proof, use description and so on.
