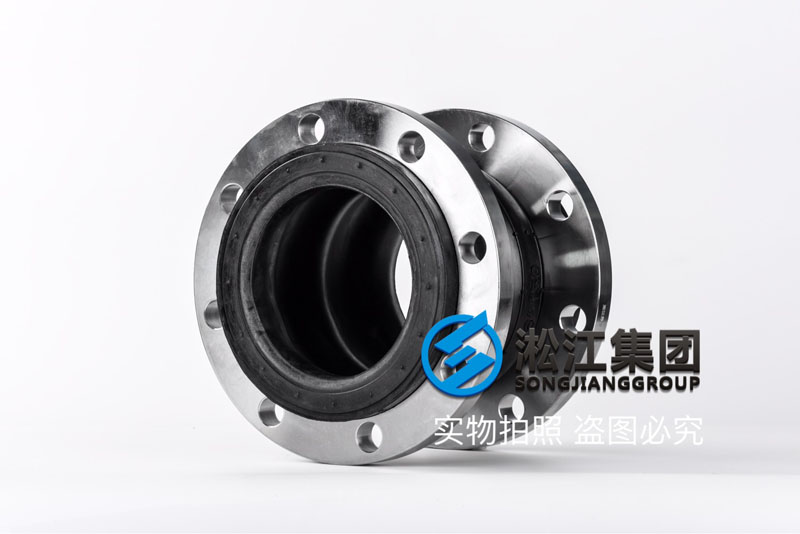

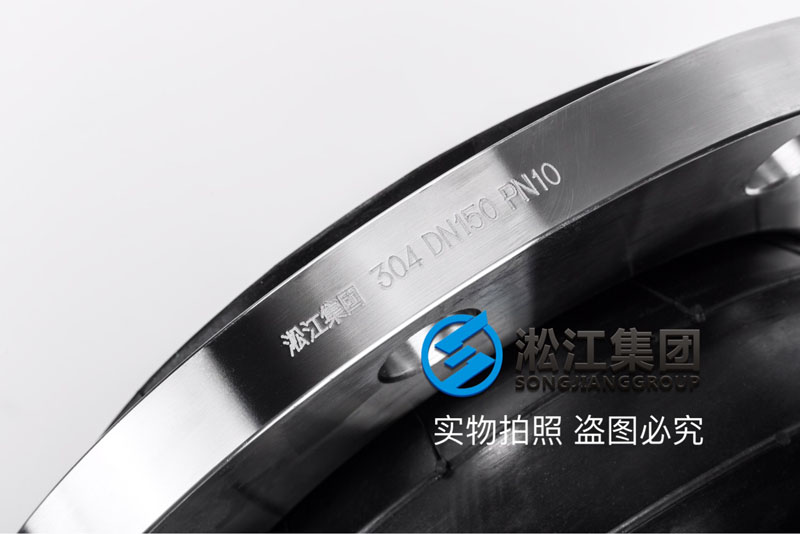

KST-F SUS304 DN150 双球橡胶软接头

周期:2018.5.19

服务内容:KST-F SUS304 DN150 双球橡胶软接头

简介:上海淞江减震器集团有限公司官方网站为您介绍:KST-F SUS304 DN150 双球橡胶软接头信息,淞江集团专业生产各种橡胶软接头产品,我厂拥有自己的混炼、成型、硫化、组装、检测等整个环节的质量把控体系,确保产品的稳定性。


KST-F SUS304 DN150 双球橡胶软接头
KST-F SUS304 DN150 double ball rubber soft joint

上海淞江减震器集团有限公司官方网站为您介绍:KST-F SUS304 DN150 双球橡胶软接头信息,淞江集团生产各种橡胶软接头产品,我厂拥有自己的混炼、成型、硫化、组装、检测等整个环节的质量把控体系,确保产品的稳定性。
Shanghai Songjiang shock absorber Group Co., Ltd. official website for you: KST-F SUS304 DN150 double ball rubber soft joint information, Songjiang group professional production of various kinds of rubber soft joint products, my factory has its own mixing, molding, vulcanization, assembly, testing and other aspects of the quality of the control system, to ensure the stability of the product.

KST-F SUS304 DN150 双球橡胶软接头





http://www.songjiangjituan.com/sjjt!2017/swfupload.php?dopost=thumbnail&id=6



口径:DN150mm
英寸:6”
总长:220mm
轴向伸长:35mm
轴向压缩:50mm
横向位移:35mm
偏转角度:30°
工作压力:1.6Mpa
螺栓孔中心距:240mm
螺栓孔数:8个
螺栓孔径:23mm
橡胶材质:天然橡胶(也可以选择三元乙丙橡胶、丁腈橡胶)
法兰材质:不锈钢304法兰(也可以选择PVC法兰、碳钢法兰)
品*:松夏
厂家:上海淞江减震器集团有限公司
Caliber: DN150mm
Inch: 6. "
Chief: 220mm
Axial elongation: 35mm
Axial compression: 50mm
Lateral displacement: 35mm
Deflection angle: 30 degrees
Work pressure: 1.6Mpa
Center distance of bolt hole: 240mm
Number of bolt holes: 8
Aperture of bolt: 23mm
Rubber material: natural rubber (also can choose three yuan ethylene propylene rubber, nitrile rubber).
Flange material: stainless steel 304 flanges (also can choose PVC flange, carbon steel flange).
Brand: Matsu
Factory: Shanghai Songjiang shock absorber Group Co., Ltd.

说明:松夏是淞江集团旗下的高端品*,我厂所有:双球、丝扣、异径、耐油、高温、酸碱、球体上面都刻有松夏字样,避免与普通过水产品混搅,更避免了不良商家拿我们普通过水产品充当*产品去给客户使用,导致客户使用后质量不*,危害客户,损坏淞江集团品*形象。
Explanation: the high-end brand of Song Xia is under the banner of Song Jiang Group, our factory all: double ball, silk buckle, different diameter, oil resistance, high temperature, acid base and ball, which are all engraved with summer words, avoid mixing with ordinary water products, and avoid the bad merchants taking our ordinary water products as a product to the customers, leading customers to use them. Poor quality after use, harming customers and damaging the brand image of Songjiang group.
