金属软管CASE SHOW

DN40不锈钢防震接头

服务内容:DN40不锈钢防震接头

简介:DN40不锈钢防震接头 Stainless steel shock resistance joint 上海淞江减震器集团有限公司官方网站为您介绍:DN40不锈钢防震接头信息,淞江集团是一家从事工业管道减震防震的企业,在高速发展的今天,您的管......

DN40不锈钢防震接头
Stainless steel shock resistance joint

上海淞江减震器集团有限公司官方网站为您介绍:DN40不锈钢防震接头信息,淞江集团是一家从事工业管道减震防震的企业,在高速发展的今天,您的管道如果还没有设计减震和防震系统,那么,你的工程并将不属于新型科技环保工程。
Shanghai Songjiang absorber group limited official website for your introduction: DN40 stainless steel shockproof connection information, Songjiang group is a company engaged in industrial pipeline for earthquake damping enterprises, the rapid development of today, if there is no design your pipe cushioning and shockproof system, then you will not belong to engineering and new environmental protection science and technology engineering.

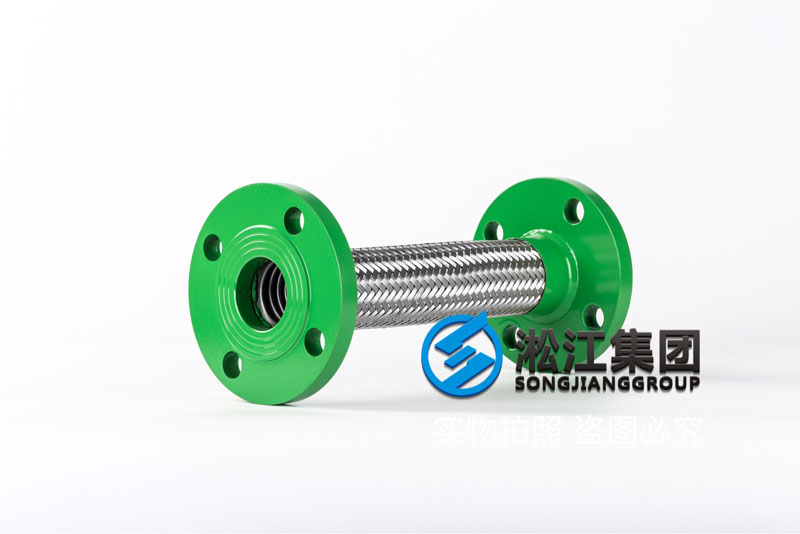

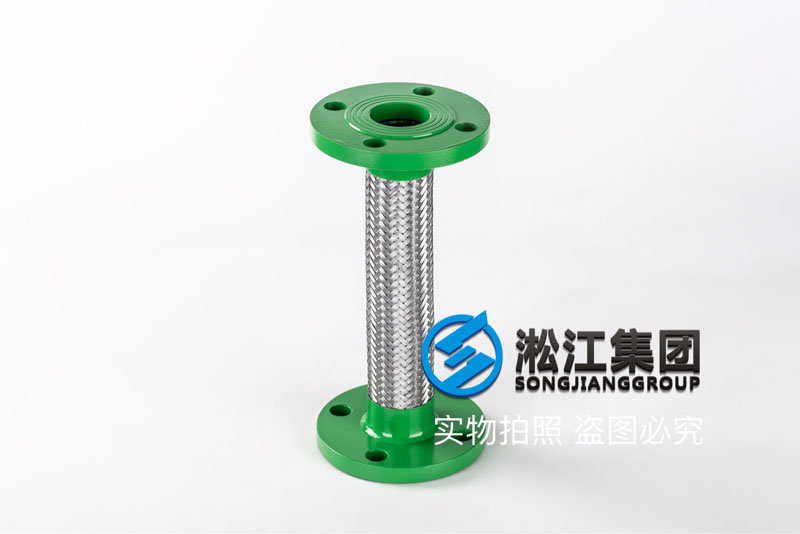

DN40不锈钢防震接头
DN40不锈钢防震接头
DN40不锈钢防震接头
DN40不锈钢防震接头
DN40不锈钢防震接头
产品名称:DN40不锈钢防震接头
型号:JTW
口径:DN40
压力:16kg
法兰材质:碳钢锻打
波纹材质:不锈钢304
编织网材质:不锈钢304
产品长度:L=300mm
优点:使用压力高、寿命长。
缺点:只能减震、不能吸收管道的噪音,使用成本高,那么需要又能减震、又能降噪,成本还低的产品是:限位橡胶接头。
品牌:淞江集团
产地:上海
生产厂家:上海淞江减震器集团有限公司
了解该产品参数信息请点击:【样册P97】JTW型不锈钢金属软管
Product Name: DN40 stainless steel shock resistance joint
Model: JTW
Caliber: DN40
Pressure: 16KG
Flange material: carbon steel forging
Corrugated material: stainless steel 304
Woven net material: stainless steel 304
Product length: L=300mm
Advantages: high pressure and long life.
Disadvantages: it can only absorb shock, not absorb the noise of pipeline, and has high use cost, so it needs shock absorption and noise reduction. The product with low cost is the limited rubber joint.
Brand: Songjiang group
Origin: Shanghai
Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.
DN40不锈钢防震接头材料说明:

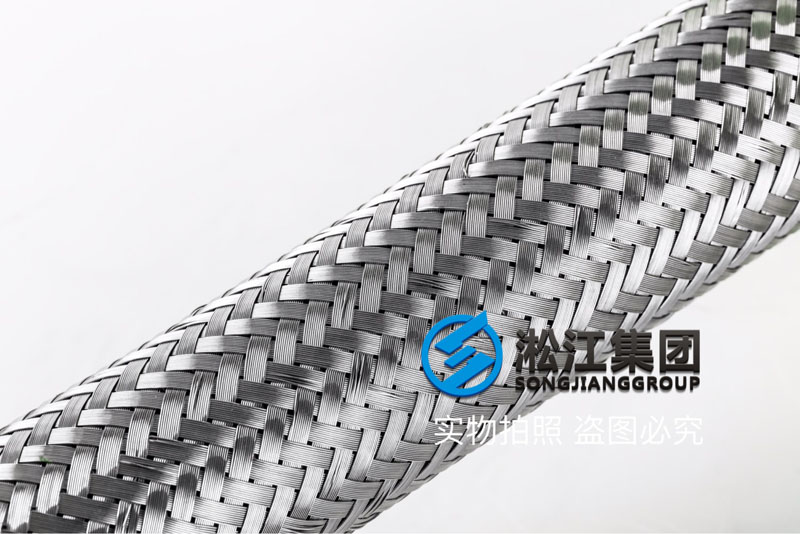

波纹管体、编织网:为了更持久的使用寿命,全部采用不锈钢304正材生产,支持各种光谱仪检测,假一赔十,厚度全部厚于同行业标准。

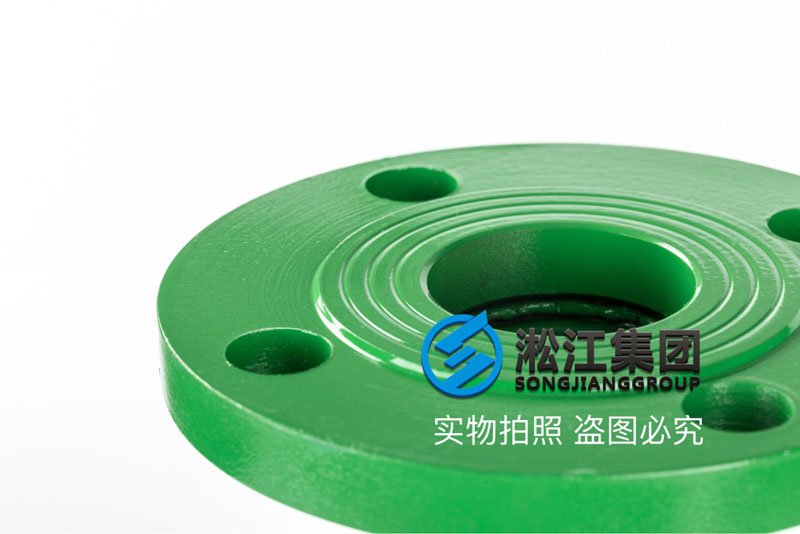

连接法兰:法兰全部采用山西正宗锻打材质,无论是强度还是密封性都是很好的材质,不要拿市面上的铸钢、钢板钢法兰来对比,没有任何可比性。
焊材:焊材全部采高于母材等级标准,让焊接点更加牢固。
Material description:
Corrugated pipe and braided mesh: in order to prolong the, all stainless steel 304 production is used to support all kinds of spectrometer detection. The fake one is ten, the thickness is all thicker than the same industry standard.
Connecting flange: all flanges are made of orthodox forging material in Shanxi, both strength and sealing are the best materials. Do not compare the cast steel and steel plate flange on the market with no comparability.
Welding consumables: welding materials are higher than the level of the parent material standard, let the welding point more firmly.
以上DN40不锈钢防震接头信息,来源于上海淞江减震器集团有限公司官方网站产品中心,如需了解更多请点击:高品质金属软管查看。
