波纹补偿器CASE SHOW

DN250给水管道波纹管补偿器

服务内容:DN250给水管道波纹管补偿器

简介:DN250给水管道波纹管补偿器 Bellows compensator for water supply pipe 上海淞江减震器集团有限公司官方网站为您介绍:DN250给水管道波纹管补偿器信息,淞江集团为给水管道推荐一款经济实用的波纹管补偿器......

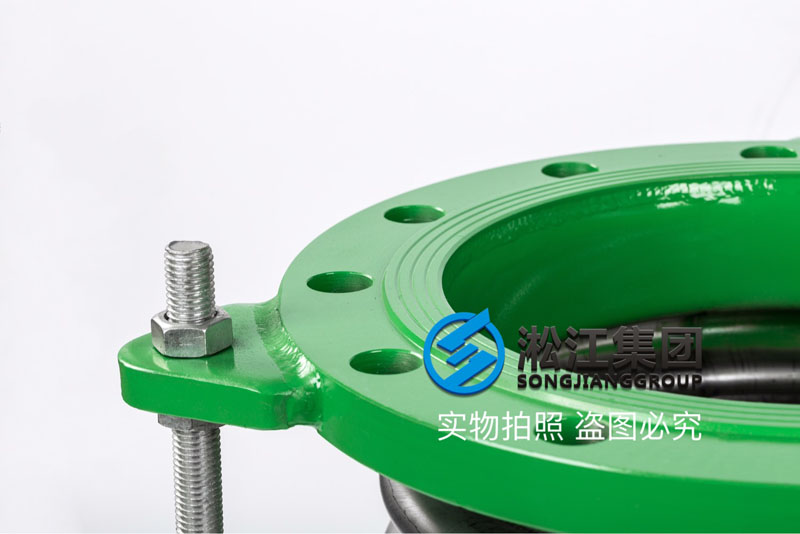

DN250给水管道波纹管补偿器
Bellows compensator for water supply pipe

上海淞江减震器集团有限公司官方网站为您介绍:DN250给水管道波纹管补偿器信息,淞江集团为给水管道推荐一款经济实用的波纹管补偿器产品,该产品具有良好的吸收管线、导管、容器等由热胀冷缩等原因而产生的轴向位移,或补偿管线、导管、容器等的轴向位移。
Shanghai Songjiang absorber group limited official website for your introduction: DN250 water supply pipeline bellows information, Songjiang group for water supply pipeline recommend an economical and practical bellows compensator product, the size change of the product has a good absorption pipeline, conduit, container by thermal expansion and contraction caused by other reasons, or compensation pipeline, catheter, vessels, axial, transverse and angular displacement.

DN250给水管道波纹管补偿器
DN250给水管道波纹管补偿器
DN250给水管道波纹管补偿器
DN250给水管道波纹管补偿器
DN250给水管道波纹管补偿器
名称:给水管道波纹管补偿器
口径:DN250mm
压力:PN16
波数:6波
厚度:1.2mm
长度:330mm
伸缩量:60mm
波纹材质:不锈钢304
法兰材质:碳钢(锻打)
适用于:管道管线中
作用:吸收管道热胀冷缩的轴向位移
缺点:请在管道进水口加装有效去除氯离子装置(氯离子含量不超过25mg/L),避免水氯离子含量超标,产生针孔腐蚀;
取代者:橡胶接头是用在设备进出口的,可以补偿轴向和横向位移,减震效果是最好的。并且不受管道内部介质的腐蚀。
品牌:淞江集团

制造商:上海淞江减震器集团有限公司

Name: water pipe bellows compensator
Caliber: DN250mm
Pressure: PN16
Wave number: 6 wave
Thickness: 1.2mm
Length: 330mm
Scalability: 60mm
Corrugated material: stainless steel 304
Flange material: carbon steel (forging)
Brand: Songjiang group
Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.
了解该产品参数信息请点击:【样册P93】BGF型 不锈钢波纹补偿器
DN250给水管道波纹管补偿器中间波纹部分采用奥氏体不锈钢材料或按用户要求的材料制造,具有优良的柔软性,耐蚀性,耐高温性,耐高压性,在管路中可补偿轴向位移,用以温度补偿和吸收振动、降低噪声、改变介质输送方向、消除管道间或管道与设备间的轴向位移等,双法兰金属波纹软管对有轴向位移的管道补偿尤为适用。
DN250给水管道波纹管补偿器习惯上也叫膨胀节、伸缩节,不锈钢波纹伸缩节属于一种补偿元件。利用其工作主体波纹管的有效伸缩变形,以吸收管线、导管、容器等由热胀冷缩等原因而产生的轴向变化,或补偿管线、导管、容器等的轴向位移,也可用于降噪减振等。
DN250 water supply pipe bellows compensator using austenitic stainless steel material or according to user requirements for the manufacture of materials, with softness, excellent corrosion resistance, high temperature resistance, high pressure, in the pipeline can be connected to any direction, with temperature compensation and absorb vibration and reduce noise, changing the medium conveying direction, eliminate the mechanical displacement of the pipe or pipe and between devices, especially for the flexible joint with double flange corrugated metal hose on the displacement and vibration of pump and valve etc..

DN250 water supply pipe bellows compensator is customarily called expansion joint and expansion joint, and stainless steel corrugated expansion joint belongs to a kind of compensation element. The effective expansion and deformation of bellows can be used to absorb the size change of pipeline, conduit, container and so on, and compensate for axial, lateral and angular displacement of pipelines, conduits, containers, etc., which can also be used for noise reduction and vibration reduction.

材料说明:
波纹管体:为了更持久的使用寿命,全部采用不锈钢304正材生产,支持各种光谱仪检测,假*赔十,厚度全部厚于同行业标准。
连接法兰:法兰全部采用山西正宗锻打材质,无论是强度还是密封性都是很好的材质,不要拿市面上的铸钢、钢板钢法兰来对比,没有任何可比性。
焊材:焊材全部采高于母材等级标准,让焊接点更加牢固。
限位耳板:耳板全部采用加大加厚尺寸生产,每个型号都可以与同行业同型号去一对一的对比,这就是所谓的没有对比就没有伤害。
限位螺杆:螺杆全部采用8.8级高强度镀锌,为了确保产品的综合强度,不要与市面的4.8级来对比,无意义。

生产标准:淞江集团通过压力管道生产许可要求,并且严格按照压力管道生产要求进行生产,让出厂的每一个波纹补偿器产品达到100%的合格。

Material description:

Bellows body: in order to prolong the service life, it is all made of stainless steel 304 normal materials, which supports the detection of various spectrometers. The false * compensate 10, and the thickness is all thicker than the industry standard.

Connecting flanges: all flanges are made of Shanxi authentic forged materials, which are good in strength and tightness. Do not compare them with cast steel, steel plate and steel flanges on the market. There is no comparability.

Welding materials: all welding materials shall be higher than the grade standard of base metal to make the welding point more firm.

Limit ear plate: all ear plates are produced by increasing the thickened size. Each model can be compared one-to-one with the same model in the same industry, which is the so-called no harm without comparison.

Limit screw: all screws are made of grade 8.8 high-strength galvanized. In order to ensure the comprehensive strength of the product, do not compare with grade 4.8 on the market, which is meaningless.

Production standard: Songjiang group has passed the requirements of pressure pipeline production license and produced in strict accordance with the production requirements of pressure pipeline, so that each corrugated compensator product delivered can reach 100% qualification.
