RM120立式水泵橡胶减震器 Vertical pump rubber shock absorber

周期:2017.12.15

服务内容:RM120立式水泵橡胶减震器 Vertical pump rubber shock absorber

简介:上海淞江减震器集团有限公司官方网站为您介绍:RM120立式水泵橡胶减震器,淞江集团是一家专业从事工业减震器产品的企业,包括减震器的设计、研发、生产、销售一体化集团性企业。

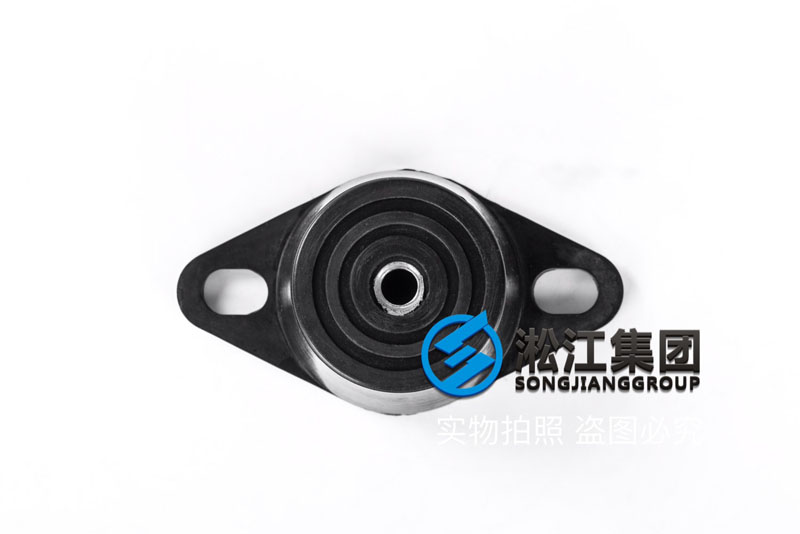

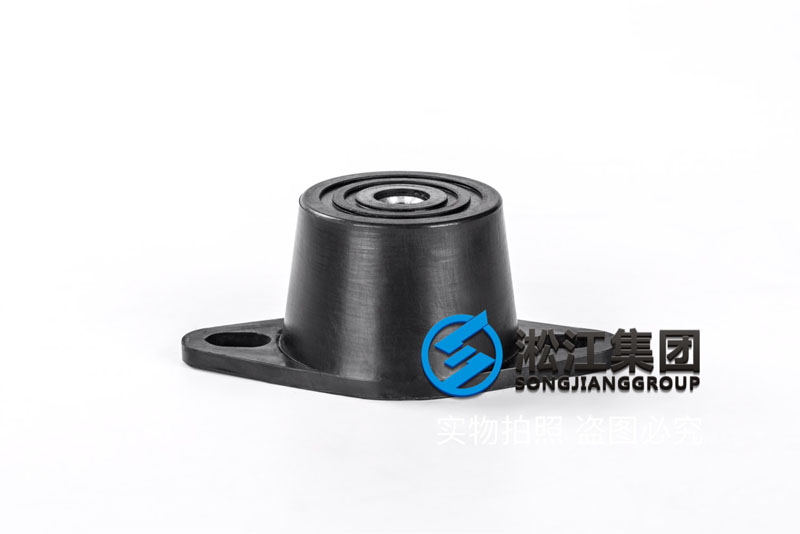

RM120立式水泵橡胶减震器
Vertical pump rubber shock absorber

上海淞江减震器集团有限公司官方网站为您介绍:RM120立式水泵橡胶减震器,淞江集团是*家从事工业减震器产品的企业,包括减震器的设计、研发、生产、销售*体化集团性企业。
The official website of Shanghai Songjiang shock absorber Group Co., Ltd. introduces you: RM120 vertical water pump rubber shock absorber, Songjiang group is an enterprise specializing in industrial shock absorber products, including the design, research and development, production and sales integration group business of shock absorber.



RM型橡胶减振器,既有橡胶剪切的承压性能,又有过负荷保护的压缩性能,整体成型,上端有螺纹安装孔,下端有防滑底板,所有金属由阻尼橡胶覆盖。这种橡胶减振器适用于减少噪声和高频率振动场所,多用于转速大于480转/分的风机、立式卧式水泵、冷水机组等减振降噪。
The RM type rubber shock absorber has both the bearing performance of the rubber shear and the compression performance of overload protection. It has overall forming, the upper end has threaded installation holes, and the bottom part has anti-skid baseplate, all metals are covered by damping rubber. The rubber shock absorber is suitable for reducing noise and high frequency vibration places. It is mainly used for vibration and noise reduction of fans, vertical horizontal pumps and chillers, whose speed is greater than 480 rpm.



RM型橡胶减震器也可以使用在小型发电机、小型空压机、小型电机,减震效果好,使用成本低,是众多设备厂家配套.选。
The RM rubber shock absorber can also be used in small generators, small air compressors and small motors, with good damping effect and low use cost. It is the first choice for many equipment manufacturers.



淞江集团生产的RM型橡胶减震器产品是由优质的天然橡胶NR生产,弹性好,为工业厂房减震做出*定的贡献。
The RM rubber cushion product produced by Songjiang group is produced by high quality natural rubber NR and has good elasticity and makes a certain contribution to the shock absorption of industrial plant.



以上RM120配电柜橡胶减震器信息来源于上海淞江减震器集团有限公司官方网站减震器栏目,以下是RM型橡胶减震器参数表:
The rubber damper information of the above RM120 distribution cabinet is from the shock absorber section of the official website of Shanghai Songjiang shock absorber Group Co., Ltd., the following is the RM rubber damper parameter table.

型号 Model
.*载荷Optimal load
kg
外形尺寸 Shape size (mm)
C
L
H
W
Φ
RM-60
60
76
105
43
10
9
RM-90
90
76
105
43
10
9
RM-120
120
76
105
43
10
9
RM-240
240
105
140
73
12
14
RM-360
360
105
140
73
12
14
RM-480
480
105
140
73
12
14
